產品系列 : 音響器材
產品型號 : 主動式12吋全音域喇叭
產品名稱 : PREMIUM PR:O 112 XD2
Active Full-Range Speaker

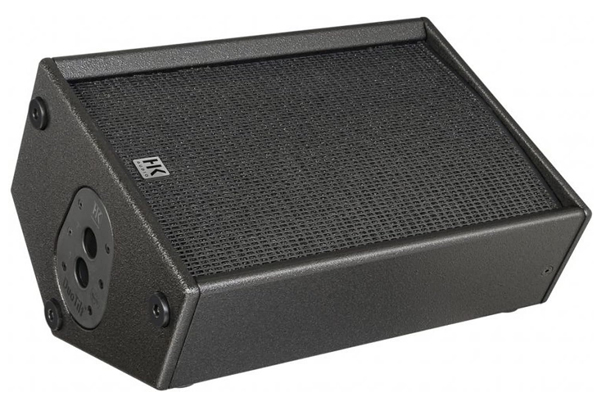

- Can also be used as a stage monitor
- Equipped with: 12" / 1"
- Power: 1200 Watt Class D Bi-Amping
- Maximum SPL: 133 dB
- Frequency response (+/- 3 dB): 80 - 16000 Hz
- DSP with Plug'n'Play operation
- Tone control for quickly adjusting sound characteristics (music / speech)
- FIR crossover
- 90° x 55° CD horn
- Input: XLR jack combo
- Output: XLR-Thru
- Sturdy wooden housing
- 3x M8 flight points

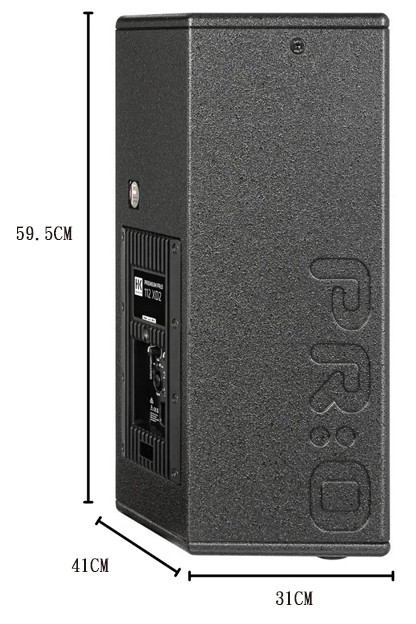

- Dimensions (W x H x D): 410 x 595 x 310 mm
- Weight: 17.9 kg
- Made in Germany
| Max. SPL @ 10 % THD | 124 dB halfspace |
| Max. SPL Peak @ 10 % THD | 132 dB halfspace |
| Max SPL calculated | 133 dB halfspace |
| Frequency response +/- 3 dB | 80 Hz – 16 kHz |
| Frequency response -10 dB | 69 Hz – 18 kHz |
| Amplifier output (Peak Power) | 1200 W |
| Amplifier type | Class D - biamped |
| Active protection circuits | Peak and RMS sound limiter (separated for HF and LMF) |
| Bass speaker | - |
| Low/mid-range speaker | 1x 12", 2" voice coil |
| HF Driver | 1", 1" voice coil |
| Horn characteristics | 90° x 55° CD horn |
| Crossover frequency active | 2.5 kHz FIR X-over with 48 dB/oct. |
| Audio connectors in | 1x XLR/jack combo balanced |
| Audio connectors out | 1x XLR thru bal. |
| Sensitivity switch | Mic/Line |
| Tone control | Tone controller (Music/Speech) |
| Filter presets | Flat/Boost |
| Setup angle | 33° |
| Pole mount | DuoTilt 3/7 |
| Rigging points | 3x M8 |
| Carrying handles | 1, SingleGrip, |
| 1, MultiGrip | |
| Housing | MDF |
| Finish | Black acrylic enamel |
| Front grille | 1.5 mm metal grille backed with black acoustic foam |
| Dimensions (WxHxD) | 41 x 59.5 x 31 cm |
| Weight | 17.9 kg / 39,5 lbs |
