產品系列 : 燈光器材
產品型號 : LED四合一電腦燈

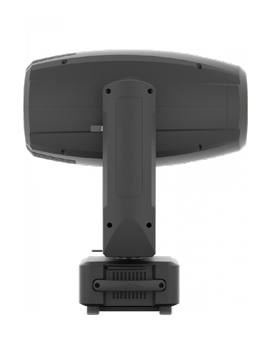

產品名稱 : FUSAN LS500SP
  • LIGHT SOURCE
  • Source：440W high-power white LED
  • CCT：6.500K
  • Lux：(5°) 26'533 lx - (50°) 1'535lx @5 m full
  • Source life expectancy：> 20.000 h



  • OPTICS
  • Zoom：5° - 50° motorised linear zoom
  • Lens diameter：120mm / 4.72''
  • Lens type：HD anti-reflection lenses with achromatic coating
  • Focus：motorised with auto-focus
  • Other：high-quality flat-field projection



  • COLOUR SYSTEM
  • Colour mixing：linear CMY
  • CCT：linear CTO correction 2.700 K ~ 6.000 K
  • Colour wheel：7 colour filters



  • DYNAMIC EFFECTS
  • Shutter system：(inc) 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
  • Animation wheel：(opt) animation wheel with CW and CCW rotation
  • Rotating gobos：6 rotating gobos + open, interchangeable, indexing
  • Gobo size: outer：26,7 mm - image: 20 mm - thickness: 1,1 mm
  • Fixed gobos：7 fixed gobos + open, interchangeable
  • Gobo size: outer：26,7 mm - image: 20 mm - thickness: 1,1 mm
  • Circular prism：3f with bi-directional rotation, indexing
  • Frost：linear 0 - 100% frost filter
  • Iris：5 - 100% motorised iris



  • BODY
  • Pan angle：630° - 540°
  • Tilt angle：267°
  • Pan/Tilt resolution：bit 8 / 16bit



  • CONTROL
  • Protocols：DMX512, RDM, W-DMX
  • DMX channels：28 / 30 / 37 / 38channel
  • W-DMX：included, wireless solution receiver
  • RDM：RDM ready for remote monitoring and settings
  • Display：LCD high resolution colour display
  • Firmware upgrade：yes, via USB - DMX interface (UPBOX2) not included
  • Hibernation：power safe mode when lost DMX



  • ELECTRONICS
  • Dimmer：linear 0 ~ 100% electronic dimmer
  • Strobe / shutter：1 - 28 Hz, electronic
  • Display battery：self-charging battery backup
  • Operating temperature：-10° ~ +45°



  • ELECTRICAL
  • Mains power supply：100-240V - 50/60Hz
  • Max power consumption：650W
  • Max power consumption (at 120V)：650W
  • Power factor：0,98



  • PHYSICAL
  • Cooling：combination of heat pipe cooling system and low noise fan
  • Suspension and fixing：any position with quick-lock omega brackets
  • Pan / tilt lock：for transportation and maintenance
  • Signal connection：Amphenol XLR 3p + 5p IN/OUT connectors
  • Power connection：Neutrik powerCON TRUE1 IN connector
  • IP rating：20
  • Dimensions (WxHxD)：428x757x291mm
  • Weight：31kg
