產品系列 : 音響器材

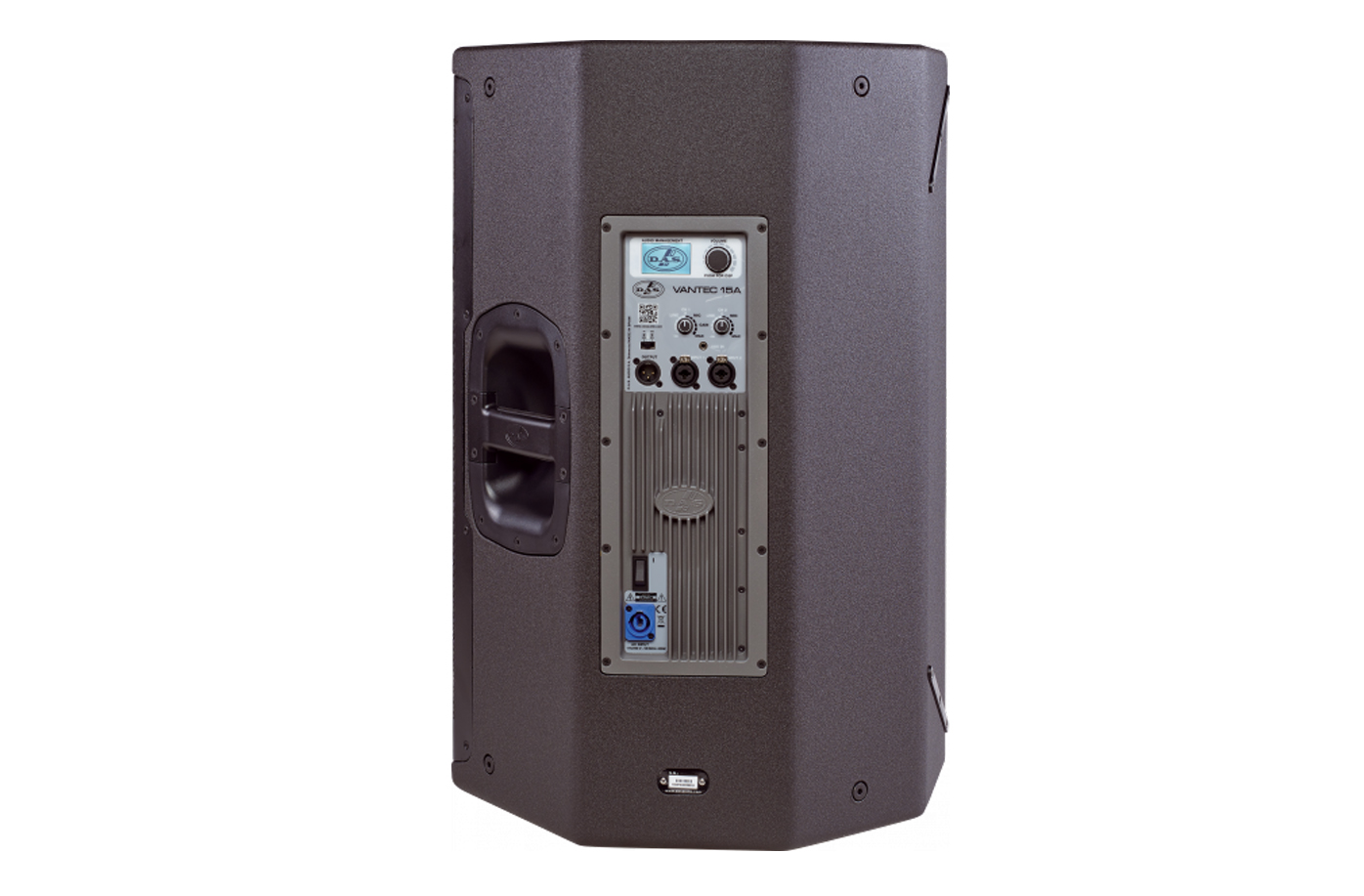

產品型號 : VANTEC-15A
產品名稱 : 主動式15吋喇叭
| Performance | |
| Frequency Range (-10 dB) | 45 Hz – 20 kHz |
| Horizontal Coverage (-6 dB) | 90º |
| Vertical Coverage | 50º |
| Maximum Peak SPL at 1 m | 135 dB |
| Electronics and Connectors | |
| Nominal Amplifier Power (continuous) | 750 W |
| Nominal Amplifier Power (peak) | 1500 W |
| Input Type | Balanced |
| Input Impeadance | 20 kohms |
| Input Sensitivity | 3 V (+12 dBu) |
| Audio Signal Input Connector | 2 x Female XLR |
| AUX Input | 1 x 3.5 mm Mini Jack |
| Audio Signal Loop Thru Connector | 1 x Male XLR |
| Control | DASlink™ DAScontrol™ |
| AC Input Connector | powerCon NAC3FCA |
| Operating Range | 90-250 VAC |
| Current Draw 115 V | 3.0 A |
| Current Draw 230 V | 1.5 A |
| Enclosure | |
| Enclosure Construction | Birch Plywood |
| Enclosure Geometry | Trapezoidal |
| Rigging | M10 Rigging Points |
| Finish | ISO-flex Paint |
| Color | Black |
| Dimensions ( H x W x D ) | 720 x 445 x 380 mm 28,3 x 18,0 x 17,5 in |
| Net Weight | 25,5 kg ( 56,2 lb ) |
| Components | |
| LF Driver | 15FV4 |
| HF Driver | M-28 |
| Horn/Waveguide | BC-95 |
| Shipping | |
| Carton Dimensions ( H x W x D ) | 815 x 451 x 526 mm 32,1 x 17,8 x 20,7 in |
| Shipping Weight | 27,5 kg ( 60,6 lb ) |
※支援藍芽，可同時控制四支喇叭※
※樺木音箱，高音細膩，低音飽滿※
