產品系列 : 音響器材

產品型號 : KR402

產品名稱 : 音柱型喇叭

ACOUSTICS		ACOUSTICS
Power handling	1600 W (AES)	Power handling	720 W (AES)
Impedance	4Ω	Impedance	4Ω or 16Ω (selectable)
Frequency range	30 Hz - 150 Hz ± 3dB (preset relating)	Frequency range	120 Hz - 20 KHz.
Maximum SPL	130 dB continuous - 136 dB peak	Maximum SPL	128 dB continuous - 134 dB peak
COVERAGE		COVERAGE
Horizontal	Omni°	Horizontal	90°
Vertical	Omni°	Vertical	7°- 30° (selectable)
CROSSOVER		CROSSOVER
Type	DSP controlled	Type	External Crossover required
Frequency	150 Hz (preset dependent)	Frequency	High pass @120 Hz, 24 dB/oct suggested minimum
TRANSDUCERS		TRANSDUCERS
Full-range	1 x 21” Neodymium speakers with 3” voice coil	Full-range	12 x 3.15” Neodymium magnet with 1” voice coil
AMPLIFIERS		POWER AUDIO INPUTS
Type	1 modules class D - DSP controlled	Connectors	2 x 4-pin Speakon
Power	2400 Watt @ 4Ω	Wiring	1+ 1- (signal IN & LINK); 2+ 2- (through)
Protection	Dynamic limiter, over current, over temp, short circuits
		SELECTION SWITCHES
		Vertical pattern	Spot - Flood
		Impedance	4Ω - 16Ω
PHYSICAL OVERVIEW		PHYSICAL OVERVIEW
Dimensions	55.5 x 55.5 x 76.3 cm (21.85“ x 21.85” x 30.03“) (1)	Dimensions	8.8 x 100.0 x 11.8 cm (3.46“ x 39.37” x 4.64 “) (1)
Weight	44.5 Kg (98.1 lb)	Weight	5.8 Kg (26.45 lb)

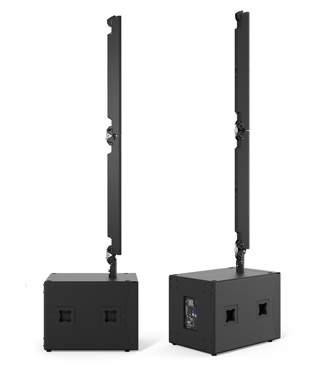

The versatile Pinnacle-KR402 I is an ultra-light powered portable system in a stero configuration. Each side features 1 x Thunder-KMT21 I subwoofer with 2 channels of 2000W matched to 2 x Python-KP102 I mid-high line array elements with 12 x 2.15" neodymium magnet transducers each. The hardware included guarantees ultra fast set-up and optimum mechanical stability.
The Pinnacle-KR402 is ideal for applications such as theaters, auditoriums and concerts and live events.

Visually Discreet	For architectural reasons, a visually discreet audio system may be required to integrate seamlessly with the layout without compromising sound quality.	Lightweight	We created a portfolio complete with lightweight products that are easy to transportation and quick to setup optimizing logistics, space, labor costs and time.
Four-Corner Port Configuration	The unique four-corner port configuration provides symmetrical back loading to the speakers, for extended bass response with very low distortion.	Weather Resistant	We utilize the most durable and resistant materials when developing our products to protect and conserve the system regardless of the elements, rendering a K-array installation reliable and long-lasting.
Premium Finishes	Similar to high-end fashion accessories and jewelry, our products undergo the most advanced coating process for a more beautiful and lustrous look.	Color Customizable	We have the ability to customize your project by color matching your system to any RAL code to help you to better integrate the speakers into a wide variety of venues.

Technology

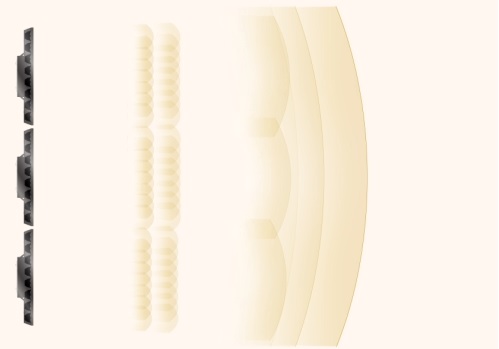

Pure Array Technology	Composed of closely-spaced, full-range sound sources, our line array elements feature demonstrate pure line array characteristics.
Integrated DSP	Built-in DSP allows for fine tuning of every single sonic parameter of the loudspeaker, providing the sound engineer the highest control on overall performance and fine granularity in system configuration.

Dante Compatible	With the dedicated K-dante accessory, this solution can be integrated into a Dante network making it interoperable with other devices.	Self-Powered Capabilities	Our self-powered solutions prevent distortion from cumbersome and fragile passive crossovers and power loss due to long running cables, and offer plenty of advantages ranging from the compactness of the solution to the ease of integration with new and existing sound systems.
Onboard Touch Screen	An integrated touch screen provides intuitive control over the main DSP functions: input/output levels, signal routing, offset delays for the subwoofer and Speakon output and overall system delay (up to 330 ms).
