富盛舞台燈光音響

產品系列 : 音響器材

產品型號 : KR202

產品名稱 : 音柱型喇叭

Thunder-KMT18 I		Kobra-KK102I
ACOUSTICS		ACOUSTICS
Power handling	800 W (AES)	Power handling	400 W (AES)
Impedance	8 Ω	Impedance	8Ω or 32Ω (selectable)
Frequency range	30 Hz - 150 Hz ± 3dB (preset relating)	Frequency range	150 Hz - 20 KHz
Maximum SPL	130 dB continuous-136 dB peak	Maximum SPL	124 dB continuous-130 dB peak
COVERAGE		COVERAGE
Horizontal	Omni°	Horizontal	110°
Vertical	Omni°	Vertical	10°- 35° (selectable)
CROSSOVER		CROSSOVER
Type	DSP controlled	Type	External Crossover required
Frequency	150 Hz (preset dependent)	Frequency	High pass @150 Hz, 24 dB/oct suggested minimum
TRANSDUCERS		TRANSDUCERS
Full-range	1 x 18” Neodymium speakers with 3” voice coil	Full-range	16 x 2” Neodymium magnet with 0.75” voice coil
AMPLIFIERS		POWER AUDIO INPUTS
Type	1 modules class D - DSP controlled	Connectors	2 x 4-pin Speakon
Power	2x1000 Watt @ 8Ω	Wiring	1+ 1- (signal IN & LINK); 2+ 2- (through)
Protection	Dynamic limiter, over current, over temp, short circuits
		SELECTION SWITCHES
		Vertical pattern	Spot - Flood
		Impedance	16Ω - 64Ω
PHYSICAL OVERVIEW		PHYSICAL OVERVIEW
Dimensions	46.5 x 46.5 x 59.6 cm (18.3“ x 18.3” x 23.46“) (1)	Dimensions	5.9 x 100.0 x 8.1 cm (2.93“ x 39.37” x 3.18 “) (1)
Weight	27.6 Kg (60.84 lb)	Weight	4.8 Kg (10.58 lb)

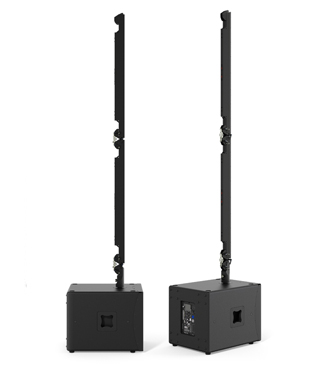

The Pinnacle-KR202 I is an ultra-light powered system in a stereo configuartion. Each side features 1 x Thunder-KMT18 I subwoofer with 2 channels of 1000W matched to 2 x Kobra-KK102 I mid-high line array elements with 16 x 2" neodymium magnetic transducers each. The hardware included guarantees ultra fast set-up and optimum mechanical stability.
The Pinnacle-KR202 is ideal for applications such as fitness and wellness and event productions, such as weddings, fashion shows and corporate events.

Four-Corner Port Configuration	The unique four-corner port configuration provides symmetrical back loading to the speakers, for extended bass response with very low distortion.	Visually Discreet	For architectural reasons, a visually discreet audio system may be required to integrate seamlessly with the layout without compromising sound quality.
Premium Finishes	Similar to high-end fashion accessories and jewelry, our products undergo the most advanced coating process for a more beautiful and lustrous look.	Color Customizable	We have the ability to customize your project by color matching your system to any RAL code to help you to better integrate the speakers into a wide variety of venues.
Lightweight	We created a portfolio complete with lightweight products that are easy to transportation and quick to setup optimizing logistics, space, labor costs and time.	Weather Resistant	We utilize the most durable and resistant materials when developing our products to protect and conserve the system regardless of the elements, rendering a K-array installation reliable and long-lasting.

Technology

Integrated DSP	Built-in DSP allows for fine tuning of every single sonic parameter of the loudspeaker, providing the sound engineer the highest control on overall performance and fine granularity in system configuration.

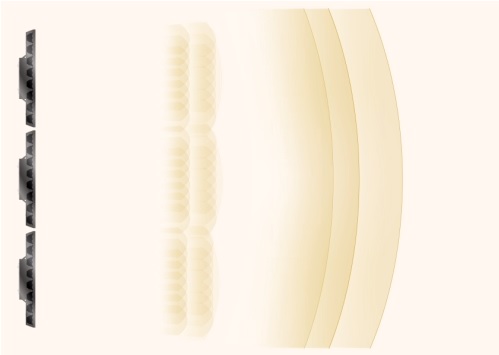

Pure Array Technology	Composed of closely-spaced, full-range sound sources, our line array elements feature demonstrate pure line array characteristics.

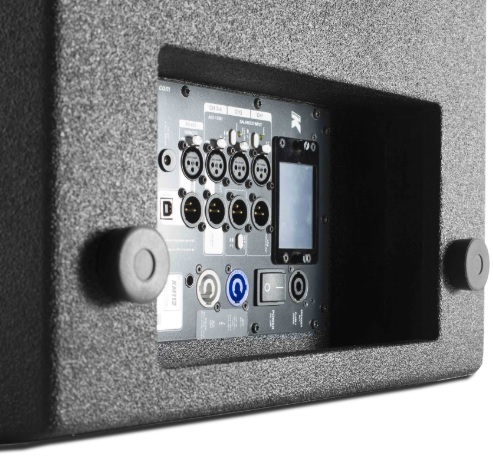

Self-Powered Capabilities	Our self-powered solutions prevent distortion from cumbersome and fragile passive crossovers and power loss due to long running cables, and offer plenty of advantages ranging from the compactness of the solution to the ease of integration with new and existing sound systems.	Onboard Touch Screen	An integrated touch screen provides intuitive control over the main DSP functions: input/output levels, signal routing, offset delays for the subwoofer and Speakon output and overall system delay (up to 330 ms).
Dante Compatible	With the dedicated K-dante accessory, this solution can be integrated into a Dante network making it interoperable with other devices.
