產品系列 : 音響器材
產品型號 : 15吋二音路主喇叭

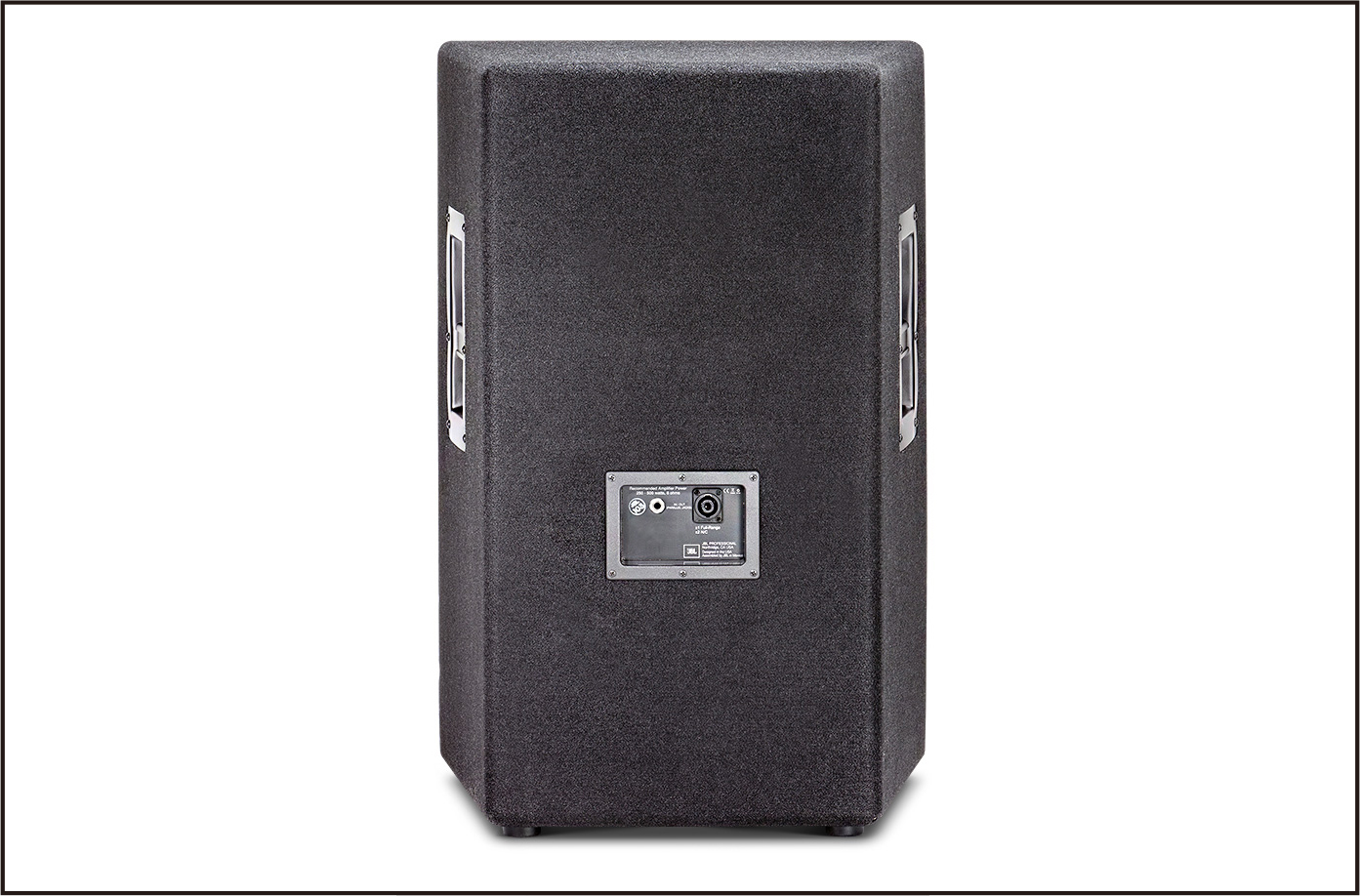

產品名稱 : JRX215
| System Type: | 15" 2-way, sound reinforcement speaker |
| 4 Frequency Range (-10 dB)1: 2 Frequency Range (-10 dB)1: |
53 Hz – 19 kHz 41 Hz – 18 kHz |
| 4 Frequency Response (±3 dB)1: 2 Frequency Response (±3 dB)1: |
80 Hz – 14 kHz 59 Hz – 13 kHz |
| Sensitivity (1w/1m): | 99 dB |
| Nominal Impedance: | 8Ω |
| Power Capacity:1 | 250 watts |
| Peak Power Capacity:1 | 1000 watts |
| Recommended Amplifier Power: | 250-500 watts @8Ω |
| Maximum SPL: | 129 dB |
| Nominal Dispersion: | 90° x 50° |
| Crossover Frequency: | 2.2 kHz |
| Dimensions (H x W x D): | 699 mm x 460 mm x 432 mm |
| Weight: | 27.4 kg (60.5 lb) |
| Shipping Weight: | 30.4 kg (67 lb) |
| High Frequency Driver: | JBL 2414H-C , 1" exit compression driver mounted on Progressive Transition™ Waveguide |
| Low Frequency Driver: | JBL M115-8A |
| Input Connectors: | Parallel Neutrik® Speakon® NL-4 (x1); ¼" TS phone jack (x1) |
| Enclosure Construction: | 19 mm (¾ in) MDF (Medium Density Fiberboard); with glued and mechanically fastened joint detail; covered in black carpet. |
| Grille: | 18-gauge, powder-coated steel |
| Mounting & Suspension: | 36 mm, dual-angle pole-mount socket |
- JBL 15 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
- JBL 2414H-C 25 mm (1 in ) polymer diaphragm compression driver improves high frequency performance as well as system reliability.
- The advanced network topology crossover design shapes the frequency response to deliver coherent summation in the crossover region.
- High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
- Progressive Transition™ high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
- The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in ) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
- SonicGuard™ protects the high frequency driver from excess power without interrupting the performance.
- Non-resonant, all-steel handles are used.
- Attractive 18-gauge perforated, steel grille protects components from damage.
- Dual-angle pole-mount socket allows the speakers to tilt 10° for more uniform audience coverage.
