產品系列 : 音響器材
產品型號 : JRX212
產品名稱 : 12吋二音路舞台監聽喇叭
| System Type: | 12" 2-way, stage monitor |
| 4 Frequency Range(-10 dB)1: 2 Frequency Range(-10 dB)1: |
75 Hz – 20 kHz 60 Hz – 20 kHz |
| 4 Frequency Response(±3 dB)1: 2 Frequency Response(±3 dB)1: |
110 Hz – 18 kHz 80 Hz – 18 kHz |
| Sensitivity(1w/1m): | 98 dB |
| Nominal Impedance: | 8Ω |
| Power Capacity2 : | 250 watts |
| Peak Power Capacity2 : | 1000 watts |
| Recommended Amplifier Power: | 250-500 watts @ 8 |
| Maximum SPL: | 128 dB |
| Nominal Dispersion: | 90° x 50° |
| Crossover Frequency: | 2.1 kHz |
| Dimensions(H x W x D): | 584 mm x 399 mm x 325 mm |
| Weight: | 19.5 kg (43 lb) |
| Shipping Weight: | 22.0 kg (49 lb) |
| High Frequency Driver: | JBL 2414H-C 1" exit compression driver mounted on Progressive Transition™ Waveguide |
| Low Frequency Driver: | JBL M112-8 |

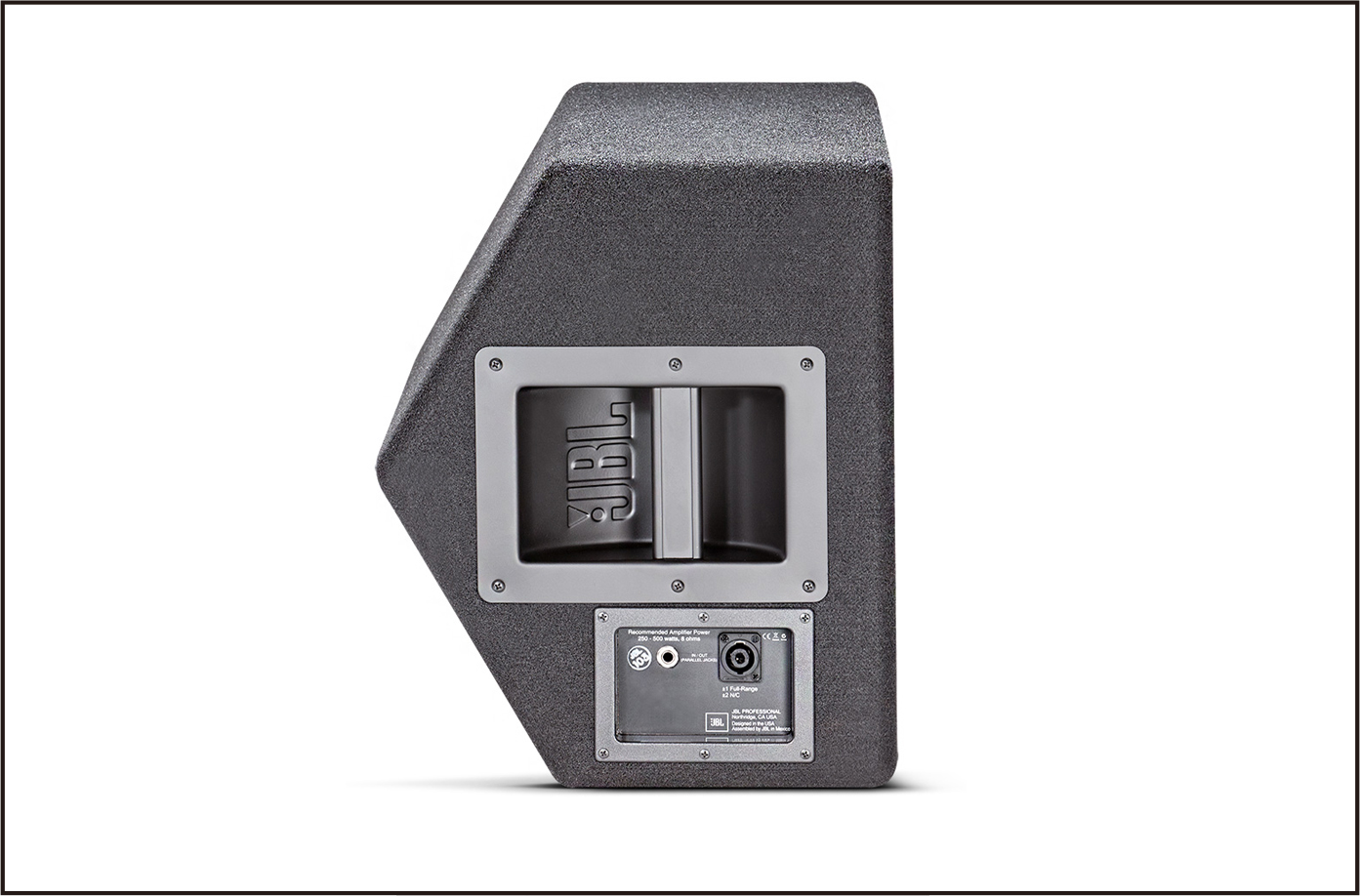

| Input Connectors: | Neutrik® Speakon® NL-4 (x1); ¼" TS phone jack (x1); parallel |
| Enclosure Construction: | 19 mm (¾ in) MDF (Medium Density Fiberboard); with glued and mechanically fastened joint detail; covered in black carpet. |
| Grille: | 18-gauge, powder-coated steel |
| Mounting & Suspension: | 36 mm, dual-angle pole-mount socket |
- JBL 12 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
- JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver improves high frequency performance as well as system reliability.
- The advanced network topology crossover design shapes frequency response and delivers "coherent summation" in the crossover region.
- High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
- Progressive Transition™ high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
- The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
- SonicGuard™ protects the high frequency driver from excess power without interrupting the performance.
- Non-resonant, all-steel handles are used.

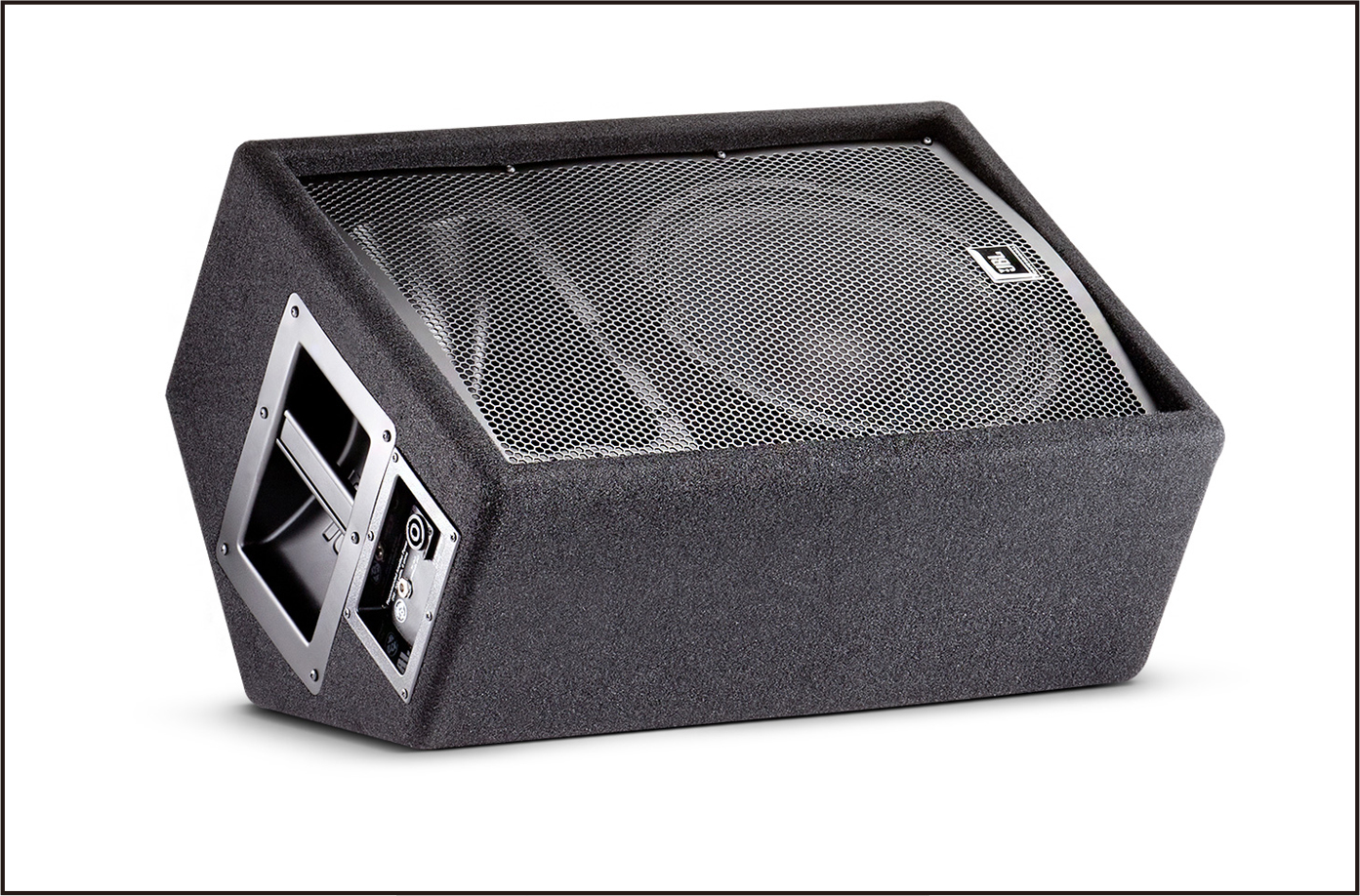

- Attractive 18-gauge hexagon perforated, steel grille protects components from damage.
- Dual-angle pole-mount socket allows the speaker to tilt 10°for more uniform audience coverage.
