產品系列 : 音響器材
產品型號 : TFA-600HDP

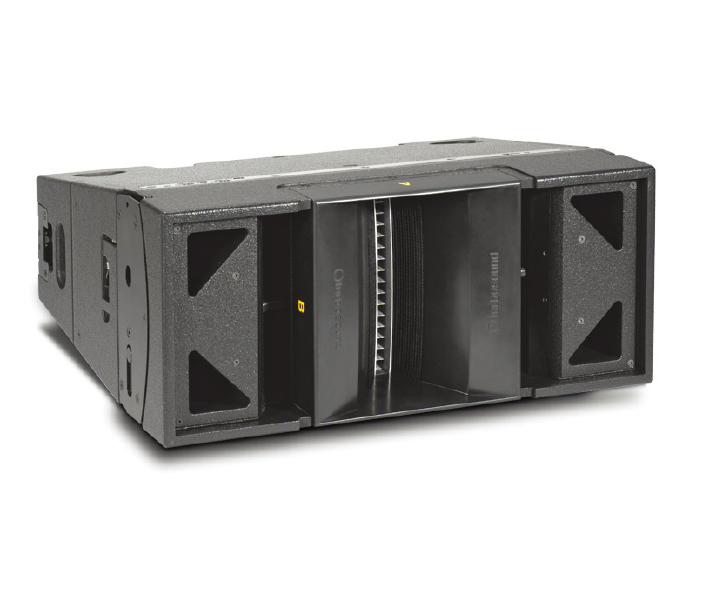

產品名稱 : 主動式陣列中高音喇叭
| DIMENSIONS (HXWXD) | 710mm x 304mm x 560mm (28” x 12" x 22") |
| NET WEIGHT | 43kg (94.6 lbs) |
| COMPONENTS | 2 x custom 10” (254mm) LMF driver, 1 x custom 6.5” (165mm) HMF driver on a midrange Polyhorn™, 1 x custom HF driver on a high frequency Dendritic device |

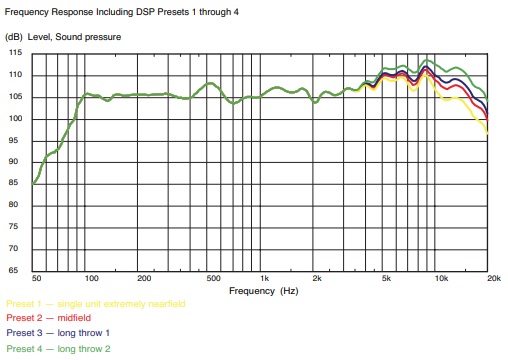

| FREQUENCY RESPONSE | 90Hz - 18kHz ±3dB, 80Hz - 20kHz ±10dB |
| DISPERSION2 | 75°H x 16°V @-6db points |
| CALCULATED MAX SPL | Single enclosure: 130dB continuous (calculated SPL addition), 136dB peak Multiple enclosures: 2 x Line Array enclosures 136dB continuous, 142dB peak 3 x Line Array enclosures 140dB continuous, 146db peak 4 x Line Array enclosures 142dB continuous, 148dB peak 2 x Point Source enclosures 133dB continuous, 139dB peak 3 x Point Source enclosures 135dB continuous, 141dB peak 4 x Point Source enclosures 136dB continuous, 142dB peak |
| AMPLIFIER | TYPE: Class D inc SMPA and networked DSP POWER OUTPUT: 2 x 800 watts continuous @ 8 ohms (1kHz, 0.01% THD) DYNAMIC RANGE: 110dB INPUT CLIP: 10dBu BANDWIDTH: 20Hz - 20kHz ±0.5dB POWER REQUIREMENTS: 100V to 240V AC @ 50/60Hz |
| CONSTRUCTION | 15mm (5/8”) birch plywood throughout; rebated, screwed and glued. Finished in black semimatt textured paint (optional TurboBlue™). Eight recessed carrying handles |
| GRILLE | Powder coated perforated stainless steel with reticulated foam backing |
| CONNECTORS | Input: (1) XLR female, Link (1) XLR male, pin 2 hot; (1) male Neutrik Powercon; (1) female Neutrik Powercon; (2) RJ4N network ports |
