產品系列 : 音響器材
產品型號 : EON615
產品名稱 : 主動式15吋喇叭
| System | |
| System Type: | Self powered 15”, two-way, bass-reflex |
| Maximum SPL Output: | 127 dB |
| Frequency Range(-10 dB): | 39Hz – 20kHz |
| Frequency Response(-3 dB): | 50Hz – 20kHz |
| Amplifier | |
| System Power Rating: | 1000W Peak (700 LF + 300HF); 500W Continuous (350W LF + 150W HF) |
| Input Impedance: | 20k (balanced) |
| Line Input Gain: | Infinity to 26.8 dBu |
| Mic Input Gain: | Infinity to 29 dBu |
| Maximum Input Level | |
| Line: | +14dBu |
| Mic: | -4dBu |
| Connectors: | 2 x Balanced XLR-1/4” combination inputs; 1 x male XLR loop thru out |

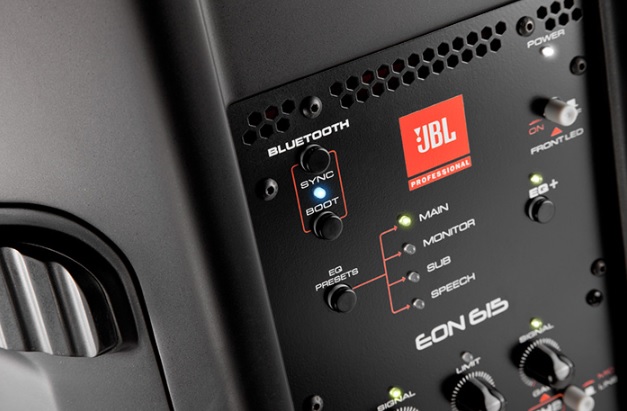

| LED Indicators: | Front Power LED (Defeatable, white) Rear Power LED (Blue), Bluetooth (Blue), EQ+ (Green) Preset (Green) Signal (Green) Limit (Orange) |
| Cooling: | Passive |
| AC Power Input: | 100-120VAC 50/60Hz; 230-240VAC 50/60Hz |
| AC Power Consumption (120V~): | 1/8th Power – 1.14A (Max), 1/4th Power – 1.71A (Max), 1/3rd Power – 2.03A (Max) |
| Speaker: | |
| LF Driver: | 1 x JBL 615H 380mm (15”) woofer with 2” voice coil |
| HF Driver: | 1 x JBL 2414H-1 25.4mm (1 in) polymer diaphragm, neodymium compression driver |
| Coverage Pattern: | 90 x 50 |
| Crossover Frequency: | 1.8kHz |
| Enclosure: | |
| Material: | Polypropylene, black |
| Monitor Angle: | Both sides |
| Suspension/Mounting: | 35mm pole socket, 3 x M10 Suspension points |
| Handles: | 4 |
| Grille: | Powder coated, Obsidian, perforated steel with acoustically transparent black cloth backing |
| Dimensions(L x W x H): | 707mm x 439mm x 365mm |
| Weight: | 39 lbs (17.6 kg) |
- Enclosure designs have been optimized for ideal acoustic resonance taking advantage of injection molding techniques and mechanical shaping of the enclosures.
- JBL Waveguide Technology
- Bluetooth integration
