產品系列 : 音響器材
產品型號 : CX-121

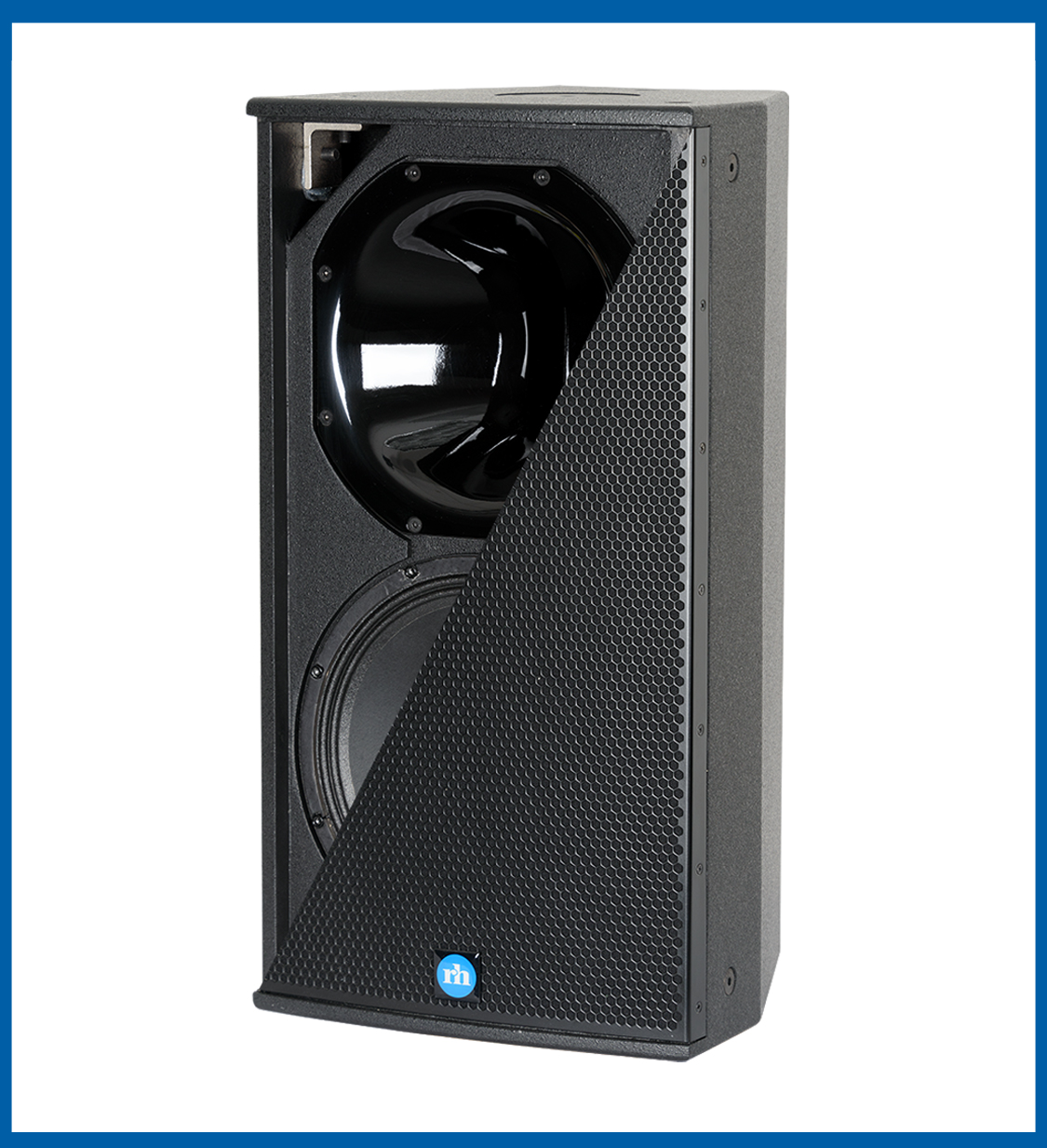

產品名稱 : 二音路12吋喇叭
| Sensitivity: | 97 dB (1W/1m) |
| Max SPL: | 128 dB Peak |
| Dispersion: | 90° x 40°, rotatable horn, (60° x 40° available for purchase) |
| Freq. Response: | ± 3 dB, 60 Hz to 20 kHz |
| HF Driver: | SSD1747-8 driver, 60 W AES @ 8 ohms |
| LF Driver: | SSL12-26, 350 W AES @ 8 ohms |
| Enclosure: | Poplar Ply, perforated metal grille |
| Finish: | Black or White Paint |
| Power Rating: | 350 W AES @ 8 Ohms 700 W Pgm @ 8 Ohms |

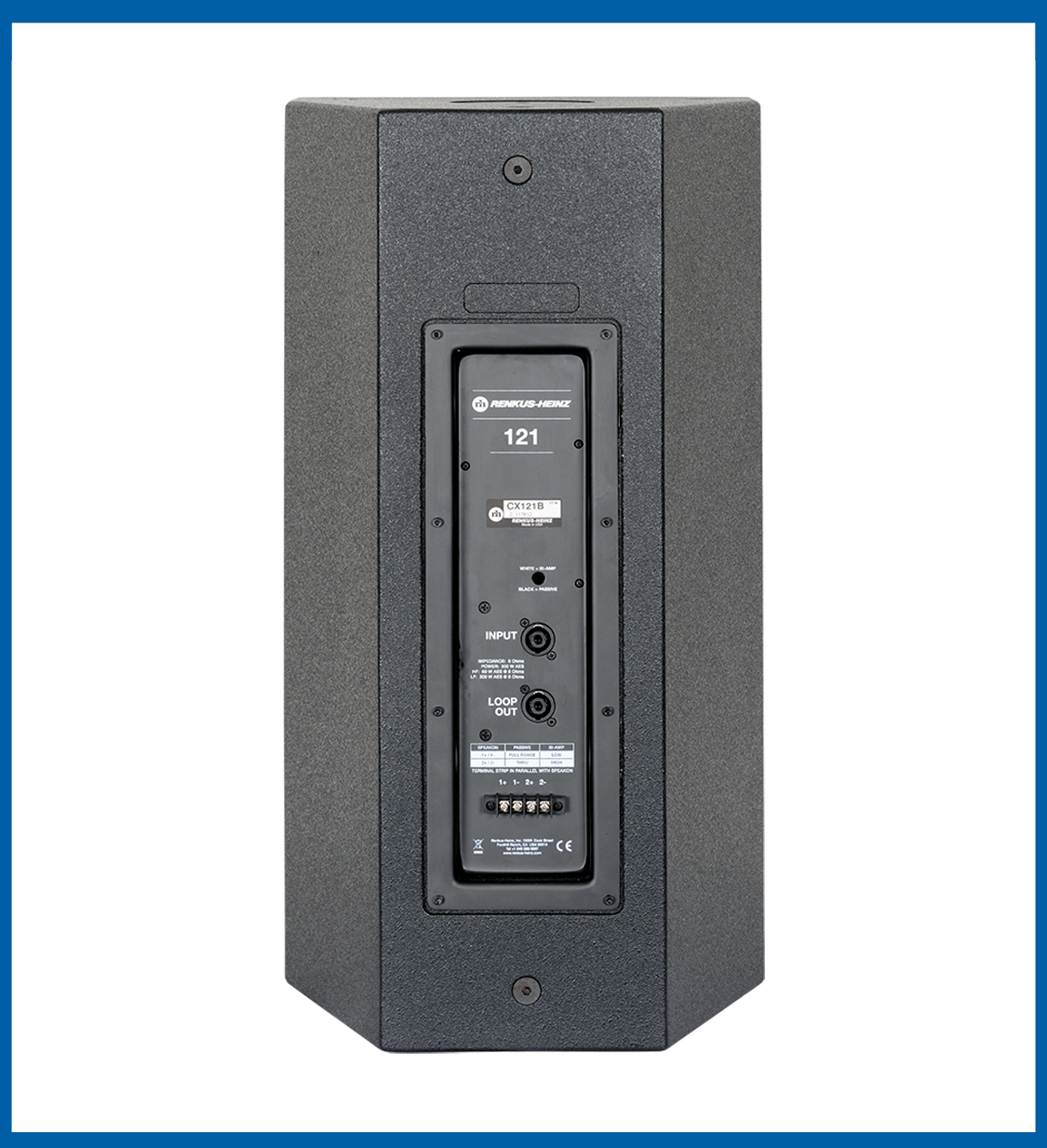

| Connectors: | Screw terminals & looping 4-pin Neutrik Speakon style connectors |
| Hardware: | 12-point Universal Mounting Hardware (Metric M10 threads) M10 U-bracket attachment points |
| Dimensions: | 27″ H x 14-3/8″ W x 14-1/4″ D 686 x mm H x 365 mm W x 362 mm D |
| Weight: | 45 lbs / 20.4 kg, Net |
- Compact Design
Outstanding, full-range ± 3 dB, 60 Hz to 18 kHz performance in a compact, space-saving design.
- Exclusive 90° x 40° Complex Conic Design
Provides constant beamwidth/directivity without the problems of conventional rectangular horns; can be rotated 90° within the cabinet for wide or deep listening spaces.
- 2-inch Extended Range Titanium HF Driver
Provides smooth, low distortion high frequency performance to 18 kHz and beyond.
- Heavy-Duty 12-inch Woofer
Easily handles 600 Watts of program power.
- Built-in Crossover
Includes EQ and high frequency protection; in the C121 eliminates need for a separate electronic crossover and bi-amplification.
