產品系列 : 音響器材
產品型號 : CX-151
產品名稱 : 二音路15吋喇叭
| Sensitivity: | 98 dB (1W/1m) |
| Max SPL: | 129 dB Peak |
| Dispersion: | 60° x 40° |
| Freq. Response: | ± 3 dB, 55 Hz to 20 kHz |
| HF Driver: | SSD1747-8, 60 W AES @ 8 ohms |
| LF Driver: | SSL15-24, 350 W AES @ 8 ohms |
| Enclosure: | Poplar Ply, perforated metal grille |
| Finish: | Black or White Paint |
| Power Rating: | 350 W AES @ 8 Ohms 700 W Pgm @ 8 Ohms |

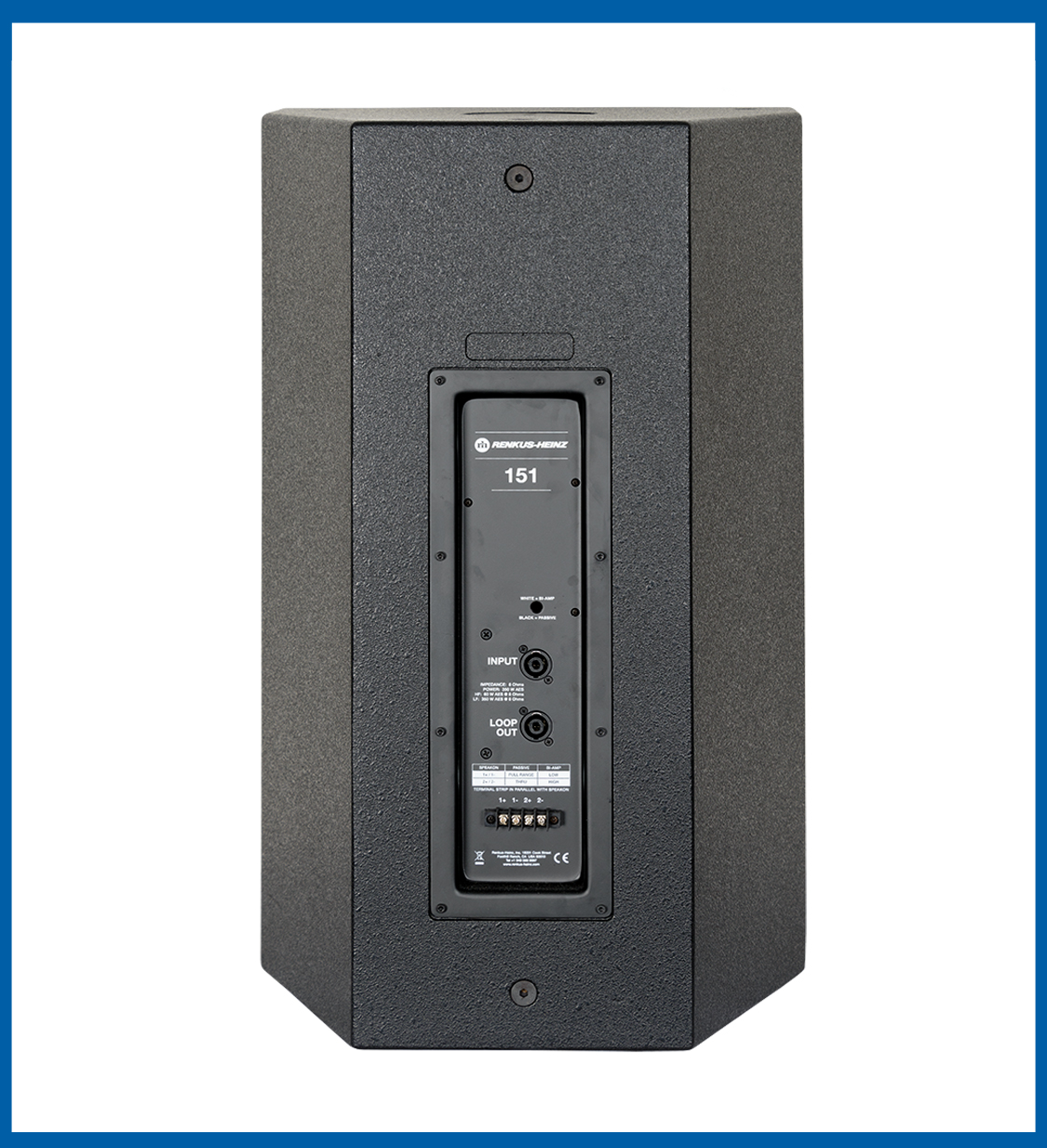

| Connectors: | Screw terminals & looping Neutrik 4-pin SpeakOn style connectors |
| Hardware: | 12-point Universal Mounting Hardware (Metric M10 threads) M10 U-bracket attachment points |
| Dimensions: | 17-½" w x 28-½" h x 17" d 445 mm w x 724 mm h x 432 mm d |
| Weight: | 52 lbs / 23.6 kg, Net |
- Compact Design
Outstanding, full-range ± 3 dB, 55 Hz to 20 kHz performance in a compact, space-saving design.
- Exclusive 60° x 40° Complex Conic Design
Provides constant beamwidth/directivity without the problems of conventional rectangular horns.
- 2-inch Extended Range Titanium HF Driver
Provides smooth, low distortion high frequency performance to 20 kHz and beyond.
- Heavy-Duty 15-inch Woofer
Easily handles 700 Watts of program power.
- Built-in Crossover
Includes EQ and high frequency protection; in the CX151 eliminates need for a separate electronic crossover and bi-amplification.
