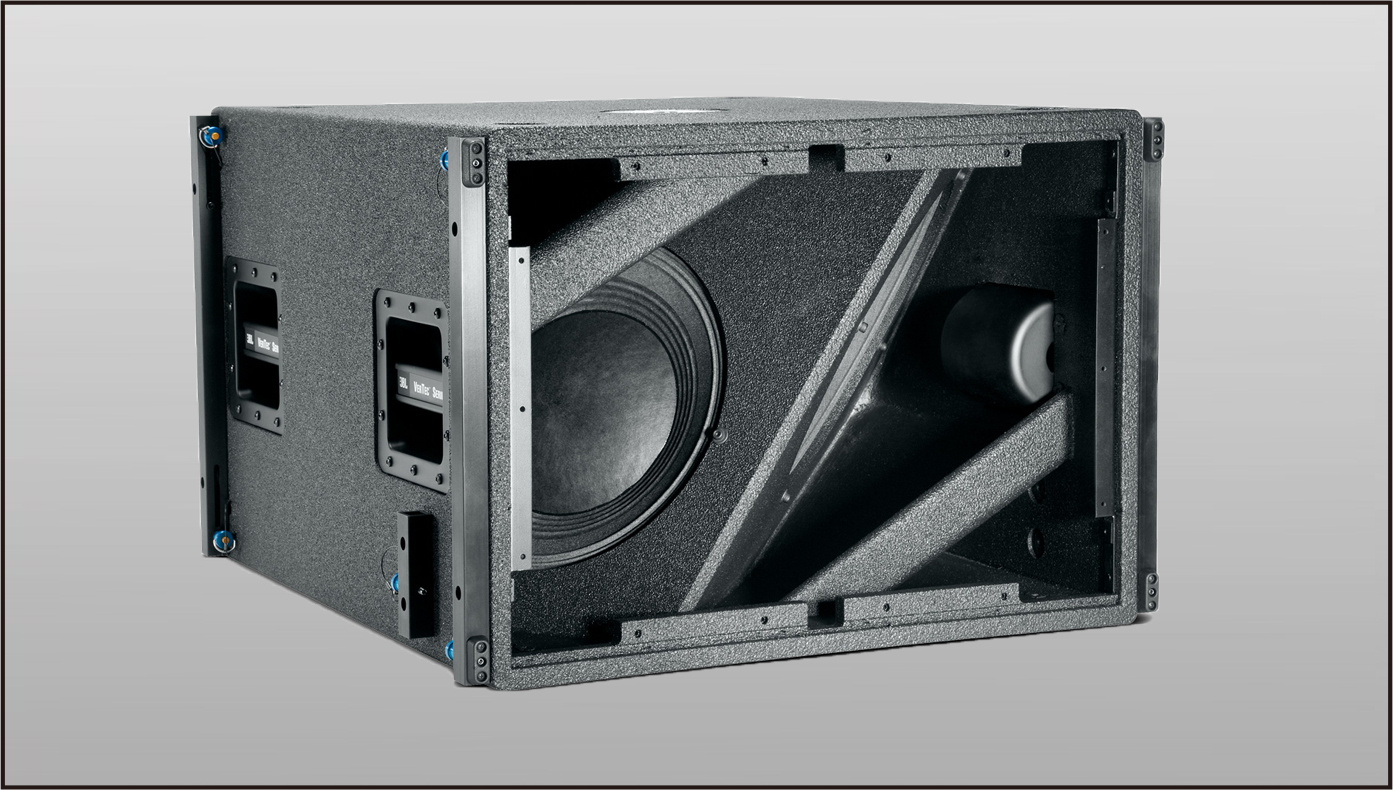

產品系列 : 音響器材
產品型號 : VT4883
產品名稱 : ARRAY雙15吋超低音喇叭
| System | |
| Frequency Range(-10 dB): | 35 Hz - 300 Hz |
| Frequency Response(±3 dB): | 40 Hz - 300 Hz |
| Recommended Bandpass: | 35 Hz - 200 Hz |
| System Input Power Rating: | 2000 W Continuous, 8000 W Peak (AES / 2 hour) 1600 W Continuous, 6400 W Peak (100 hr) |
| System Sensitivity: | 95 dB, 1 W (per driver) @ 1m (averaged 40 - 140 Hz) |
| Maximum Peak Output1 : | 139 dB SPL, 1m (2, half-space, ground-based application) 133 dB SPL, 1m (4, free-space, suspended application) |
| Recommended Amplification: | (2 x) 1600 - 2000 W into 8 ohms (transducers powered individually) 3200 - 4000 W into 4 ohms (transducers powered in parallel) |
| Recommended Signal Processing: |
Crown® I-Tech HD, Crown I-Tech, dbx® DriveRack® 4800, BSS Audio™ FDS-366T Omnidrive™, BSS Audio Soundweb™ London |
| Transducers | |
| Low Frequency: | 2 x 2263H-1, 305 mm (12 in) dia., 75 mm (3 in) Dual Coil, Dual Magnet, neodymium Differential Drive®, Direct Cooled™ |
| Nominal Impedance: | 2 x 8 ohms |
| Input Power Rating (each transducer)2: |
1000 W Continuous, 4000 W Peak (AES / 2 hour) 800 W Continuous, 3200 W Peak (100 hour) |
| Enclosure | |
| Cabinet Construction: | Rectangular enclosure. PlyMax™ engineered wood composite structure, DuraFlex™ finish, 4 handles, integral pole mount adapter (M20 thread) |

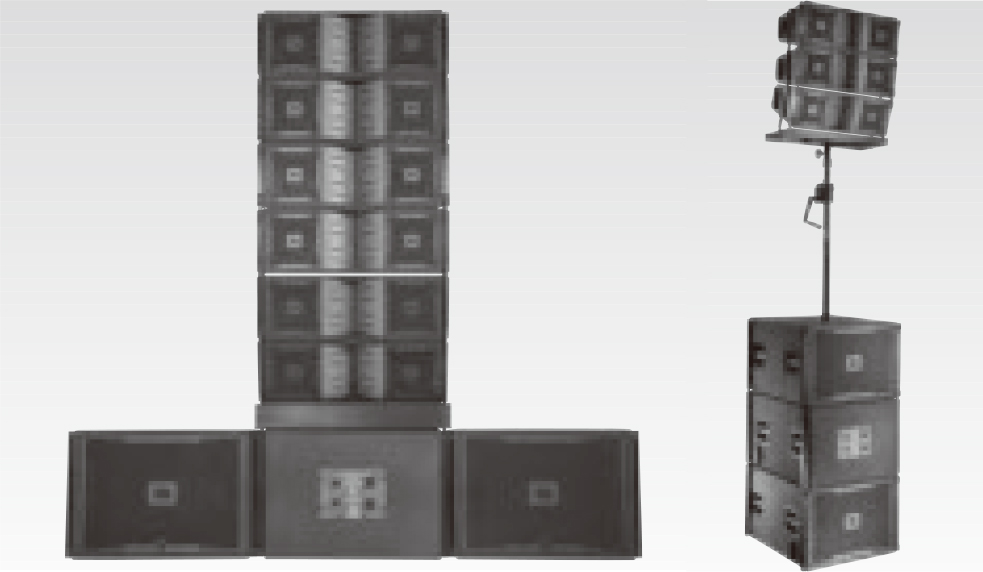

| Suspension System: | Patented S.A.F.E.™ hardware, integral hinge bars nest in suspension tubes on enclosure sides. Quick release pins with restraining lanyards. Set of 4 hinge bars included. Reverse-arrayable for gradient cardioid configurations. Suspend with VT4886-AF Array Frame. |
| Grille: | Black perforated steel, foam backed |

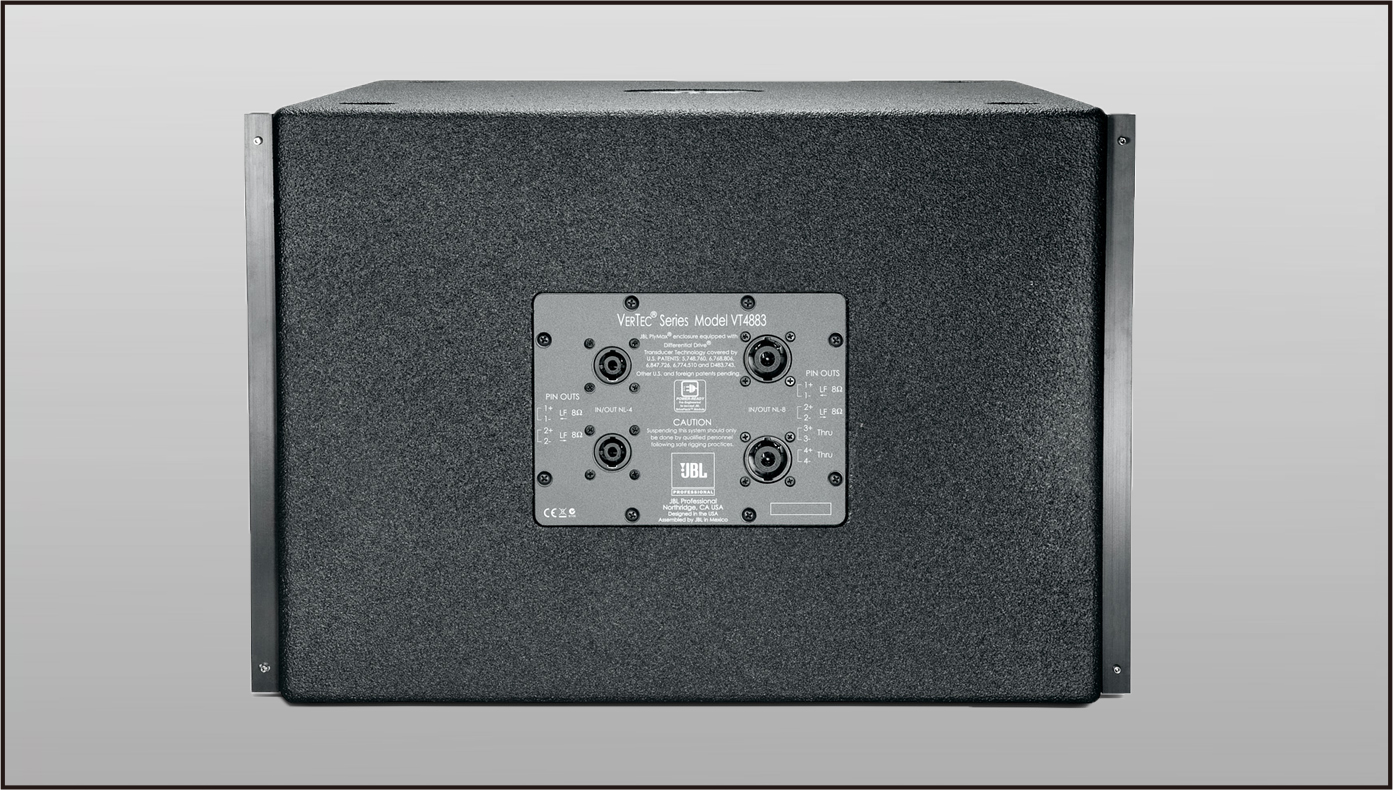

| Input Connectors: | Rear panel: Neutrik® Speakon® NL-4 and NL-8 (2x each) Front panel: Neutrik® Speakon® NL-4 (1x) for gradient cardioid configurations. All connectors in parallel, internal wiring; transducers circuited individually 1±, 2± (2 x 8 ohm) (NL4 and NL8) |
| Dimensions(H x W x D): | 398 mm x 579 mm x 643 mm |
| Net Weight: | 29.5 kg (65 lbs) |
- Advanced Technology Components: Differential Drive®, technology, Dual Neodymium Magnets, Dual Voice Coils, Direct Cooled™
- Reverse-arrayable for implementation of gradient cardioid subwoofer configurations
- JBL PlyMax® engineered wood materials provide rigid, yet lightweight enclosure
- Rugged DuraFlex™ exterior finish; weather-resistant components
- Patented, integrated S.A.F.E.™ suspension system with premium heat-treated alloys
