產品系列 : 音響器材

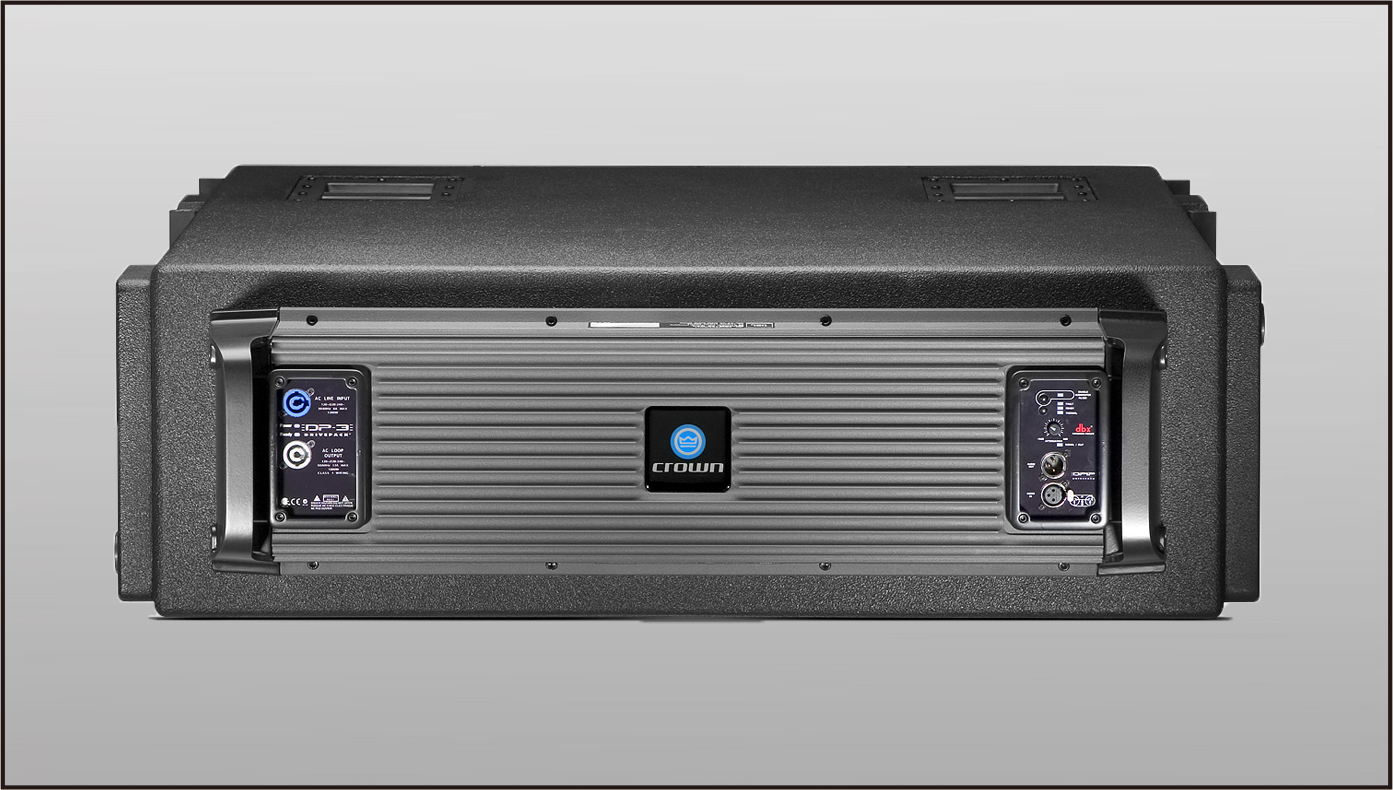

產品型號 : VT4882DP-DA
產品名稱 : ARRAY主動式雙15吋超低音喇叭
| requency Response: | 32 Hz – 110 Hz (±3 dB) |
| Frequency Range: | 28 Hz – 120 Hz (-10 dB) |
| Maximum Peak Output: | 133 dB SPL, 1m |
| Transducers | |
| Low Frequency: | Two 2266H, 381 mm (15 in) dia., 76 mm (3 in) Dual Coil, Differential Drive®, Direct Cooled |
| Nominal Impedance: | 8 Ohms each transducer |
| System | |
| DP3 Internal Amplification Output (at nominal load): |
3400W Peak, 1700W Continuous |
| DP3 LF Output Section: | 2-Channel Class-I Output at nominal load: 118V peak |
| Signal Processing: | BSS OmniDrive HD processing provides precision bandpass filters, limiting, pre-equalization filters and automatic self-test functions. |
| System Management: | LevelMax™ multi-state limiters provide electrical, mechanical and thermal protection |
| Signal Input: | Analog F-XLR Active 20k Ohms Balanced AES F-XLR, 110 ohms |
| Signal Loop-Through: | M-XLR (analog pass-through)M-XLR (buffered AES) |
| Controls: | Via Harman HiQnet System Architect software |
| AC Power Operating Range: | Auto Select 90-132VAC/216-264VAC, 50/60 Hz |
| AC Line Voltage: | 50/60 Hz, Auto-Detect; 120V / 240V (-15%, +10%) |
| AC Input Connector: AC Power Loop-thru: |
Neutrik PowerCon |
| AC Current Requirement: | 6A per system at 120V, 3A per system at 240V |
| Enclosure: | |
| Box Construction: | Wedge frustrum 5 degree side angle enclosure. PlyMax™ engineered composite structure. DuraFlex™ finish |
| Suspension System: | S.A.F.E. hardware, integral hinge bars nest in rigging tubes onbox ends. Quick release pins with restraining lanyards.Suspend with VT4888-AF Array Frame. Set of 4 hinge bars(VT4888-RIG) included with VT4882DP-DA system. |
| Grille: | Black perforated steel, Foam backed |
| Dimensions (W x H x D): |
1013 mm X 457 mm X 1011 mm (39.9" X 18" X 39.8") |
| Net Weight: | 69.9 kg (154 lb) |
-
Advanced technology components: Differential Drive®, neodymium magnet, dual voice coil, Direct Cooled™ cone transducers for low weight and high output
- JBL DrivePack® DP3 electronics package delivers superb audio quality and robust high efficiency Class-I power, perfectly matched to the enclosures, with comprehensive digital signal processing.
- Modular bay is fitted with DPDA digital audio input module, featuring BSS OmniDrive HD signal processing. Also accepts basic (non-networked, analog) dbx input module or optional Crown networked input modules.
- World-wide AC line voltages are automatically selected for 50 or 60 Hz
- Advanced construction techniques using JBL PlyMax® provide exceptionally rigid, lightweight
enclosure construction - Rugged DuraFlex™ exterior finish; weatherized components.
- Integrated S.A.F.E.™ suspension system: premium heat-treated alloys provide high-strength, reliable
hanging arrays.
