產品系列 : 音響器材
產品型號 : SRX812P

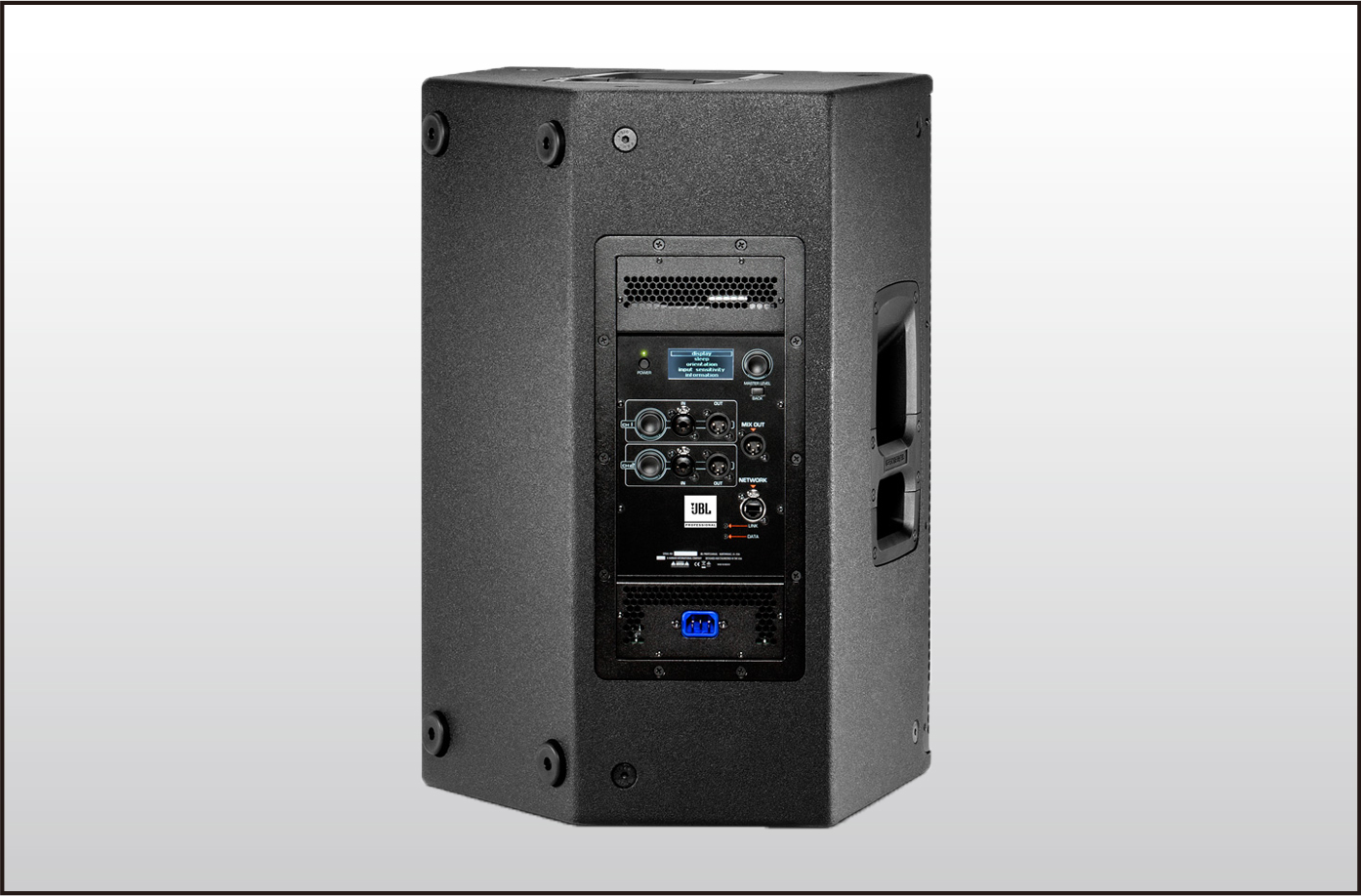

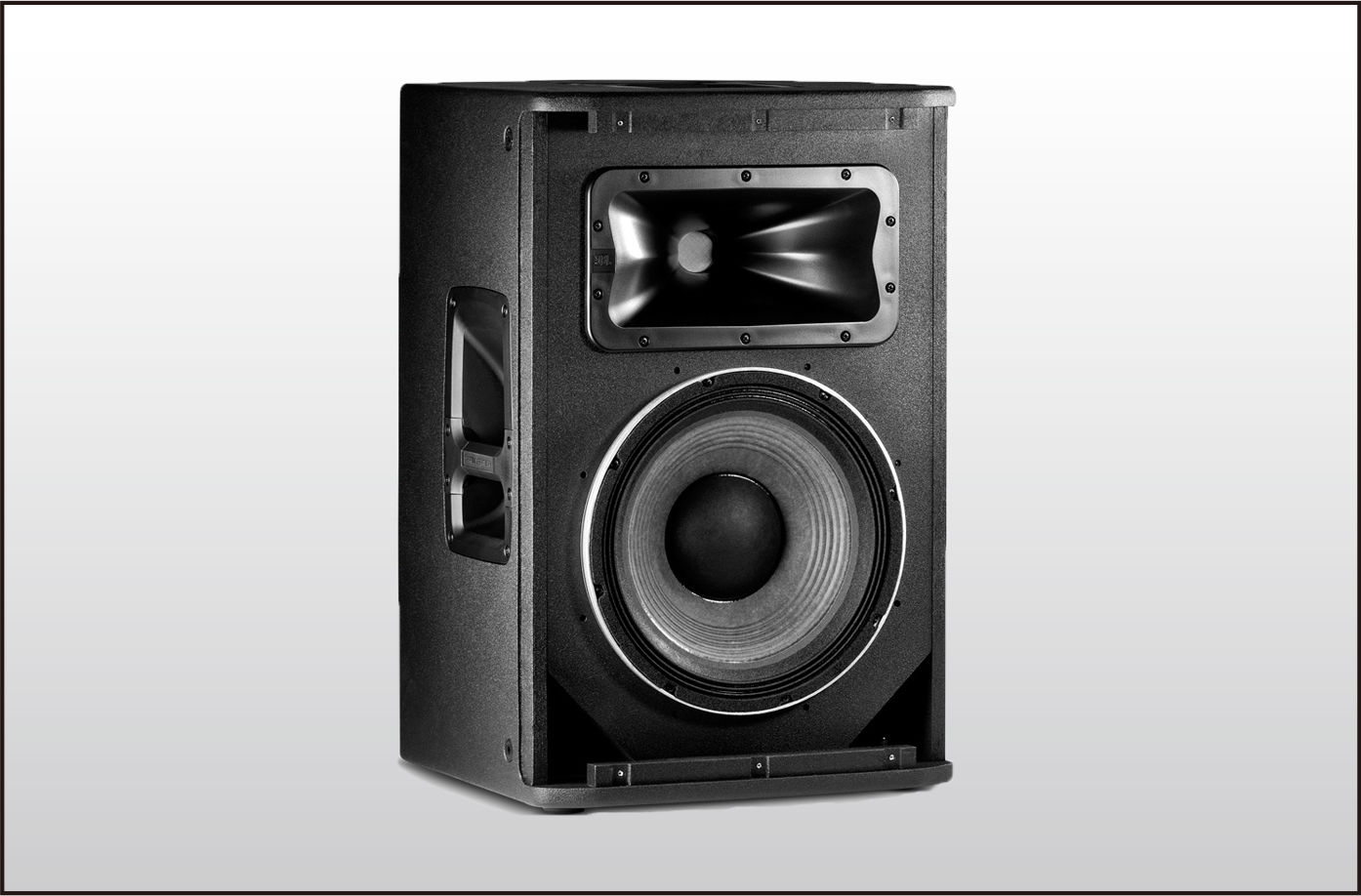

產品名稱 : 12吋二音路主動式喇叭
| System: | |
| System Type: | Self powered 12”, two-way, bass-reflex |
| Maximum SPL Output: | 136 dB |
| Frequency Range(-10 dB): | 40Hz – 21kHz |
| Frequency Response(-3 dB): | 48Hz – 20kHz |
| Amplifier: | |
| System Power Rating: | 2000W Peak, 1500W Continuous |
| Input Impedance: | 40k balanced, 20k unbalanced |
| Line Input Gain: | 21 dB |
| Consumer Input Gain: | 33 dB |
| Mic Input Gain: | 45 dB |
| Maximum Input Level: | |
| Line: | 20dBu |
| Consumer: | 8dBu |
| Mic: | -4dBu |
| Connectors: | Neutrik ¼ - XLR input; Neutrik XLR Output |
| LED Indicators: | Power LED (Green) Network Link (Green) Network Data (Yellow) |
| Cooling: | On-Demand variable speed fan |
| AC Power Input: | 100V - 240V~ 50/60 Hz |
| AC Power Consumption(120V~): | 2.2A (1/8th Power), 5.6A (1/3rd Power) |
| Speaker: | |
| LF Driver: | 2272F |
| HF Driver: | 2432H |
| Coverage Pattern: | 90 x 50 |
| Crossover Frequency: | 1.9kHz |
| Enclosure: | |
| Material: | 18mm plywood |
| Monitor Angle: | Yes |
| Suspension/Mounting: | Dual 36mm pole socket, 12 x M10 Suspension points |
| Handles: | 3 |
| Finish: | Obsidian Duraflex™ finish |
| Grille: | Powder coated, Onsidian, 14-gauge perforated steel with acoustically transparent black cloth backing |
| Dimensions(L x W x H): | 429mm x 415mm x 638mm |
| Weight: | 58.0 lbs (26.4 kg) |
- Purposeful Design: Rugged, Intuitive to Use, Easy to Transport
- JBL Premium Transducers
- Drivecore Amplification By Crown
- Full User Configurable DSP
- Network Control
- JBL Engineered Application Presets
- LCD Screen and Glow in the Dark Ink on Back Panel
- M10 Suspension Points
- Standard 35mm Pole Cup
- Feet for Monitor Angle
