產品系列 : 音響器材
產品型號 : VRX915S
產品名稱 : 15吋超低音喇叭
| System Type: | 15" bass reflex subwoofer |
| Frequency Range(-10 dB): | 35 Hz - 250 Hz |
| Frequency Response(±3 dB): | 40 Hz - 250 Hz |
| Recommended Hi-Pass Filter: | High-pass: Butterworth 24 dB/oct, 45 Hz Low-pass: Linkwitz-Riley 48 dB/oct, 80 - 120 Hz |
| Power Rating1:(Continuous / Program / Peak) | 800 W / 1600 W / 3200 W |
| Maximum Peak SPL2: | 126 dB SPL |
| Sensitivity (1w @ 1m): | 91 dB SPL |
| LF Driver: | 1 x JBL 2265G-1, 380 mm (15 in) Differential Drive® woofer |
| Nominal Impedance: | 4 Ohms |
| Active Tunings: | Tunings available at www.jblpro.com |
| Enclosure: | 15 mm - 18 mm, multi ply birch plywood |
| Suspension / Mounting: | Top mounted M20 threaded socket for optional pole SS4-BK. Integrated flying hardware for use with array frame VRX-SMAF. 8 M10 fittings. Optional M10 eyebolt kit. |
| Transport: | Integrated steel handle with backing cup |
| Finish: | Black DuraFlex™ finish |
| Grille: | Powder coated, black, 16 gauge perforated steel with acoustically transparent black foam backing. |

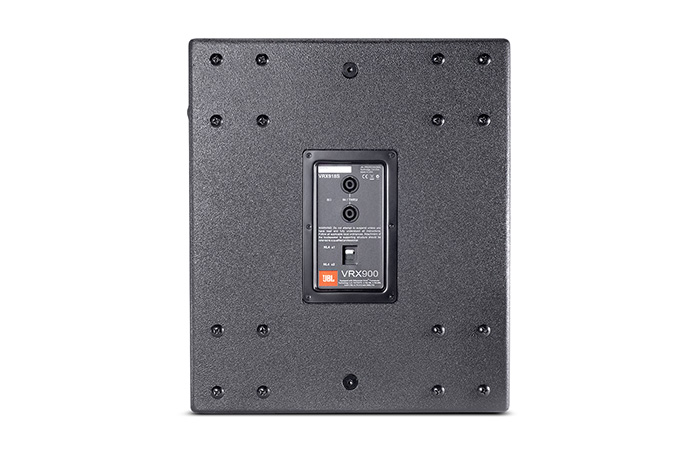

| Input Connectors: | Neutrik® Speakon NL-4 (x2) |
| Input connection modes: | Switchable, +1/-1 or +2/-2 |
| Dimensions(H x W x D): | 496 mm x 420 mm x 597 mm (19.5 in x 16.5 in x 23.5 in) |
| Net Weight: | 26 kg (57 lb) |

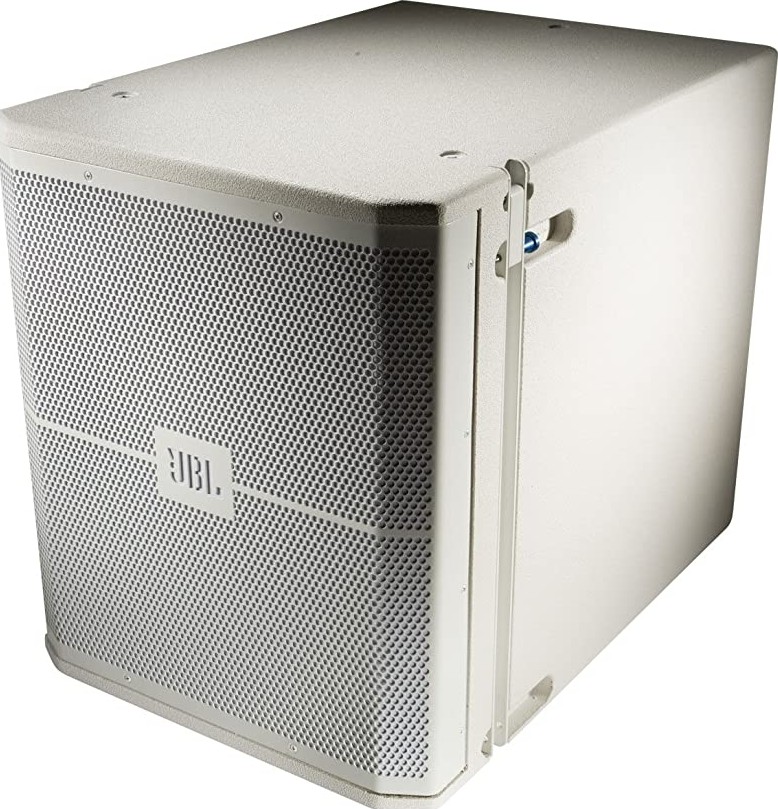

黑色/白色可選
- Integral rigging hardware for simple connection of VRX915S line-arrays and optional array frame.
- 15 inch, 2265G-1 Differential Drive® woofer for extended low-frequency output.
- Light and compact for versatility and easy handleability.
- 20 mm threaded pole socket for solid, secure satellite speaker mounting.
APPLICATIONS
- Live performance systems.
- Mobile and fixed DJ systems.
- Sound system rental and tour.
- Permanent installations.
