產品系列 : 音響器材
產品型號 : VRX918S

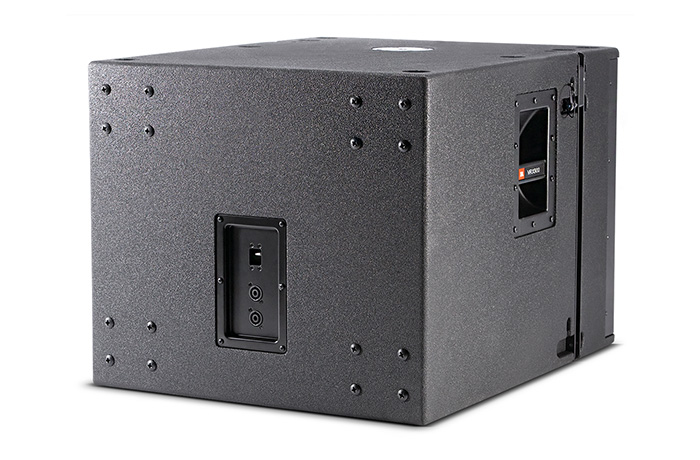

產品名稱 : 18吋超低音喇叭
| System Type: | 18" bass-reflex subwoofer |
| Frequency Range(-10 dB): | 31 Hz – 220 Hz |
| Frequency Response(±3 dB): | 34 Hz – 220 Hz |
| Input Connection Modes: | Switchable, +1/-1 or +2/-2 |
| Recommended Crossover Frequencies: | 80 Hz, 24 dB / octave HPF 80 Hz, 24 dB / octave LPF |
| Power Rating (Continuous1/Program/Peak): |
800 W / 1600 W / 3200 W |
| Maximum SPL2: | 130 dB SPL peak |
| Sensitivity(1w @ 1m): | 95 dB SPL |
| LF Driver: | 1 x JBL 2268H 457 mm (18 in) Differential Drive woofer |
| Nominal Impedance: | 8 ohms |
| Active Tunings: | dbx DriveRack, all models. Settings available at www.jblpro.com |
| Mounting: | Top mounted M20 threaded socket for optional SS4- BK pole |
| Suspension / Mounting: | Optional VRX-AF line array frame kit or M-10 eyebolt kit |
| Enclosure: | Rectangular, 18 mm, 13-ply birch plywood |
| Finish: | Black DuraFlex finish |
| Grille: | Powder coated, black, 16-gauge perforated steel with acoustical transparent charcoal foam backing. |
| Input Connectors: | Neutrik® Speakon® NL-4 (x2) |
| Dimensions(H x W x D): | 508 mm x 597 mm x 749 mm (20.0 in x 23.5 in x 29.5 in) |
| Net Weight: | 37 kg (81 lb) |

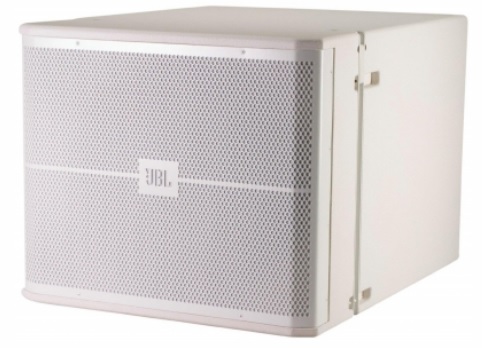

黑色 / 白色可選
- Integral rigging hardware for simple connection of VRX932LA line-arrays and optional array frame.
- 18 inch, 2268H Differential Drive® woofer for extended low-frequency output
- Large port area for reduced distortion
- 20 mm threaded pole socket for solid, secure satellite speaker mounting
