產品系列 : 音響器材
產品型號 : VRX932LA-1
產品名稱 : 12吋中高音陣列喇叭
| Frequency Range (-10 dB)1: | 57 Hz - 20 kHz |
| Frequency Response (±3 dB)1: | 75 Hz - 20 kHz |
| Coverage Pattern: | 100° x 15° nominal |
| Crossover Modes: | Bi-amp / passive, externally switchable |
| Crossover Frequency: | 1.2 kHz |
| Crossover Frequency: | 1.2 kHz |
| Power Rating (Continuous/Program/Peak)2: |
Passive: 800 W / 1600 W / 3200 W Bi-amp LF: 800 W / 1600 W / 3200 W Bi-amp HF: 75 W / 150 W / 300 W |
| System Maximum SPL2: | 130 dB SPL peak (passive mode) LF: 130 dB HF: 139 dB |
| System Sensitivity (1w @ 1m): | 95 dB SPL (passive mode) LF: 95 dB (Bi-Amp mode) HF: 114 dB3 (Bi-Amp mode) |
| LF Driver: | 1 x JBL 2262H 305 mm (12 in) Differential Drive® woofer with neodymium magnet, dual voice-coils, and dual magnetic gaps. |
| HF Driver: | 3 x JBL 2408J, 38 mm (1.5 in) voice-coil, neodymium compression driver |
| Nominal Impedance: | Passive: 8 ohm Bi-amp LF: 8 ohms Bi-amp HF: 8 ohms |
| Active Tunings: | Tunings available at www.jblpro.com |
| Enclosure: | 18 mm, 11-ply birch plywood. |
| Suspension / Mounting: | Optional VRX-AF line array frame kit; M-10 Eyebolt Kit |
| Finish: | Black DuraFlex™ finish |
| Grille: | Powder coated, black, 16-gauge perforated steel with acoustically transparent foam |

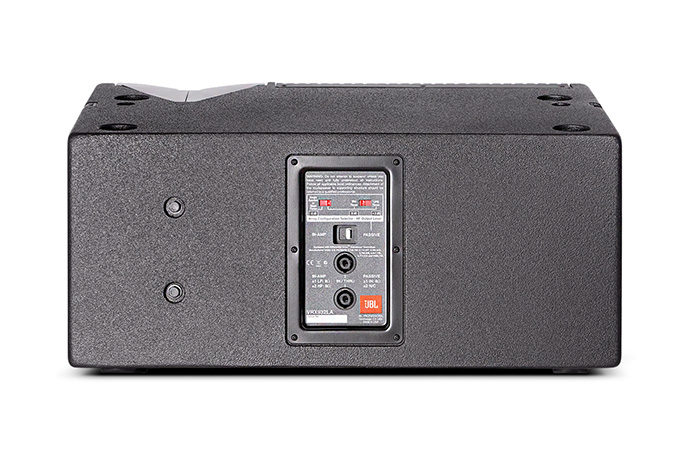

| Input Connectors: | Neutrik® Speakon® NL-4 (x2) |
| Dimensions (H x W x D): | 349 mm x 597 mm x 381 mm (13.75 in x 23.5 in x 15.0 in) |
| Net Weight: | 21 kg (46 lb) |
黑色 / 白色可選
- JBL’s exclusive neodymium magnet Differential Drive® woofer for high-power capacity and light-weight.
- VRX932LA-1 features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
- Constant Curvature waveguide for unprecedented array coherence.
- Dual angle pole socket for aiming flexibility. One or two speakers may be mounted to a 35 mm pole or

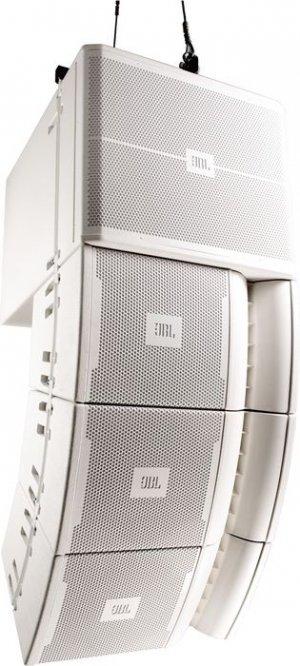

tripod stand. - Integral rigging hardware for simple connection of enclosures and optional array frame. Arrays of up to six enclosures may be flown.
- Array Configuration Selector permits “array shading” in passive mode.
