產品系列 : 音響器材

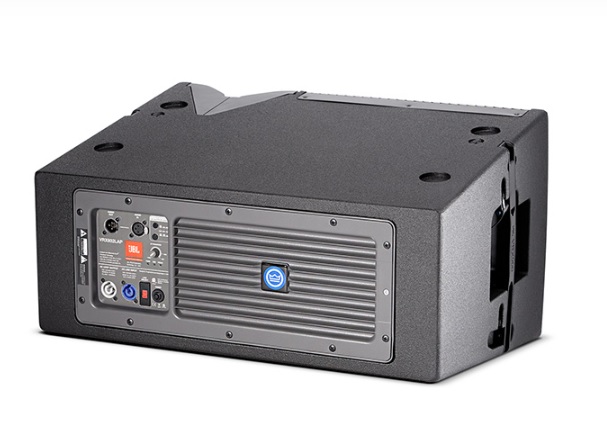

產品型號 : VRX932LAP
產品名稱 : 主動式12吋中高音陣列喇叭
| Frequency Range (-10 dB): | 57 Hz - 20 kHz |
| Frequency Response (±3 dB): | 75 Hz - 20 kHz |
| Coverage Pattern: | 100° x 15° nominal |
| Maximum Peak Output1: | 136 dB SPL at 1m |
| LF Driver: | 1 x JBL 2262FF 305 mm (12 in) dual voice coil Differential Drive® woofer with neodymium-magnet |
| HF Driver: | 3 x JBL 2408J, 38 mm (1.5 in) voice coil neodymium compression driver |
| Bandpass Nominal Impedance: | LFLF: 2 x 2 ohms HF: 4 ohms |
| DPC-2 Internal Amplification Output (at nominal load): | 1750 Watts Peak, 875 Watts Continuous |
| DPC-2 Output as (Continuous IEC shaped pink noise into rated load impedance): | LF: 750 Watts, HF: 125 Watts |
| DPC-2 Output Section: | LF: Dual-Bridged Technology™, Class D HF: Bridged Class D |
| Audio Input Connector: | XLR with loop through |
| User Controls: | Input Attenuator (0-16 dB) ACS (Array Configuration Selector), HF level adjustment (+3 dB, 0 dB, -3dB) |
| Signal Processing: | DSP based, resident in Input Module |
| System Management: | DSP based limiters for mechanical and thermal protection. |
| AC Power Operating Range: | 90-132 VAC or 216-264 VAC, 50/60Hz |
| AC Line Voltage: | User selectable: 120V/240V (-15%, +10%) |
| AC Input Connector: | Neutrik PowerCon (NAC 3MPA) |
| AC Loop Through Connector: | Neutrik PowerCon (NAC 3MPB) |
| AC Current Requirements: | 6A per system at 120V, 3A per system at 240V |
| Enclosure: | 25/15 mm birch plywood. |

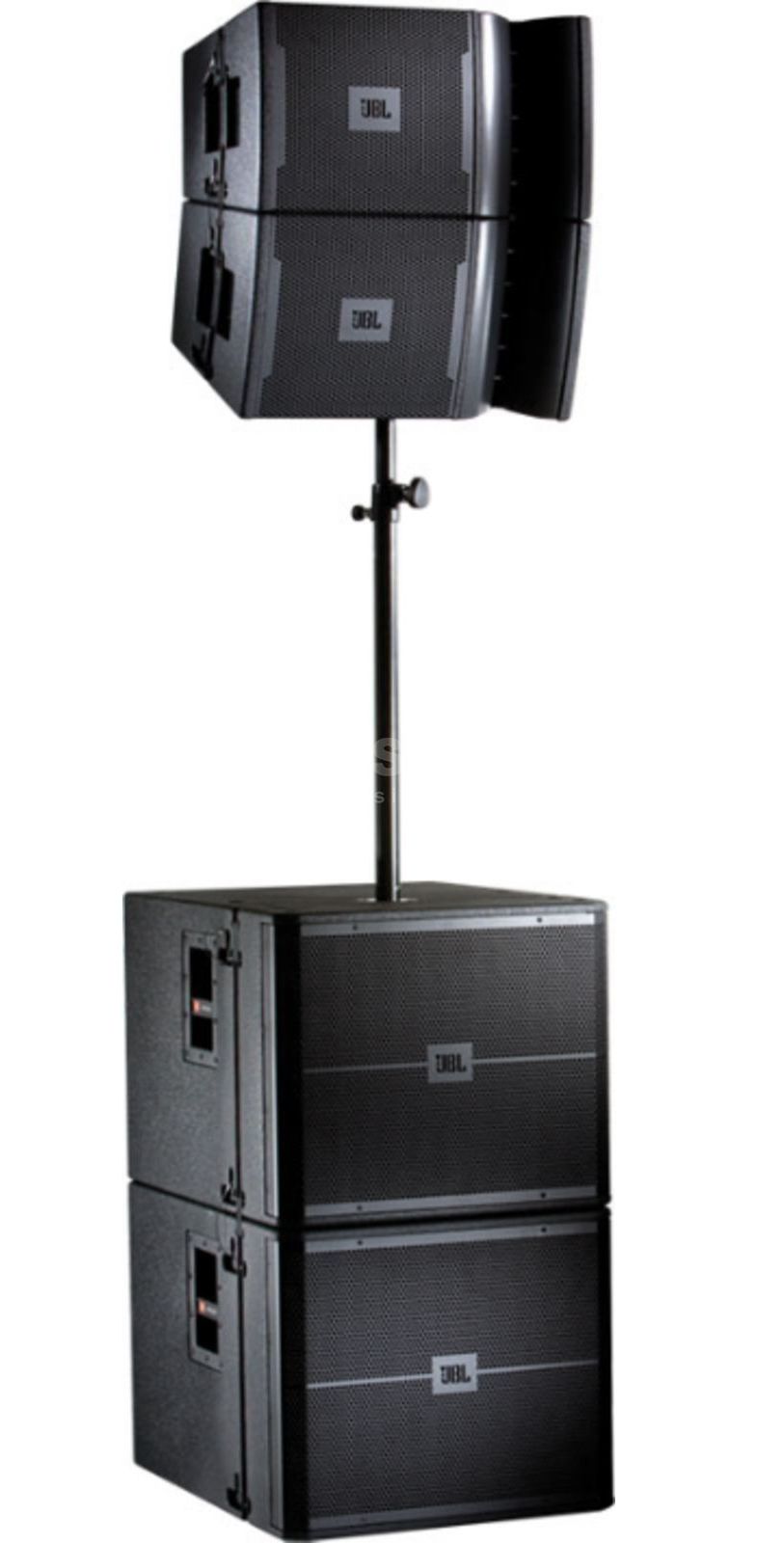

| Suspension / Mounting: | Optional VRX-AF line-array frame kit, 10mm forged eyebolts or internal dual angle 36mm pole mount cup for pole or tripod mounting |
| Finish: | Black DuraFlex™ finish |
| Grille: | Powder coated, black, 16-gauge perforated steel with acoustically transparent foam |
| Dimensions (H x W x D): | 349 mm x 597 mm x 444 mm (13.75 in x 23.5 in x 17.5 in) |
| Net Weight: | 24 kg (52 lb) |
- Built-in JBL Drivepack® DPC-2 amplifier module designed by Crown provides 1750 Watts of peak Power. DSP based resident input module provides system optimization and EQ functionality.
- JBL's exclusive neodymium magned Differential Drive® woofer for high-power capacity and light-weight.
- VRX932LAP features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
- Constant Curvature waveguide for unprecedented array coherence.
- Integral rigging hardware for simple connection of enclosures and optional array frame. Dual angle pole socket for aiming flexibility.
- Array Configuration Selector permits "array shading".
